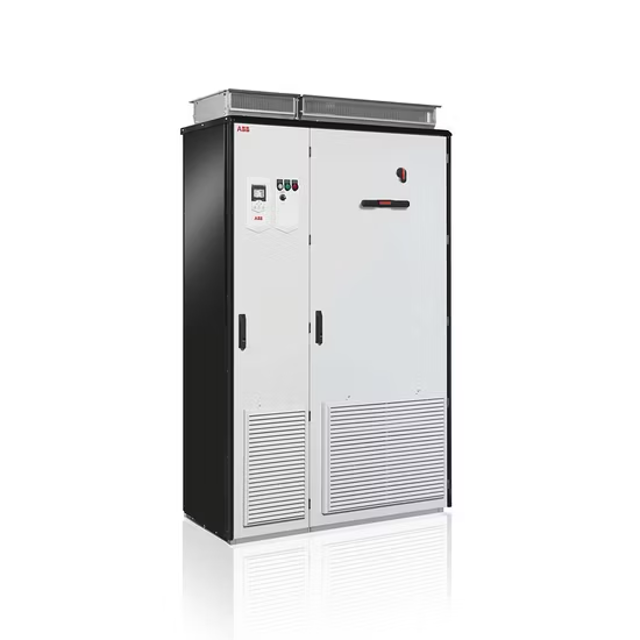

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0522A-7

Create an account to install this asset package.

Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0522A-7

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Drive Maintenance

Performance quality of supply voltage

Inspect spare parts

Performance DC circuit capacitors reforming, spare modules and spare capacitors

Inspect IP22 and IP42 air inlet and outlet meshes

Inspect tightness of terminals

Inspect dustiness, corrosion and temperature

ABB-SACE Air circuit breaker maintenance

Sign off on the yearly drive maintenance

Run this procedure

20 Yearly Safety component Replacement

Warning: This procedure requires trained personnel with PPE!

Check if the mission time of functional safety components is expired

If the mission time is expired, proceed with the following steps

Choose the type of renewal

Note: Renewal is economical only with larger drives that have replaceable circuit boards and other components such as relays.

Check if the components have been renewed earlier

If some components have been renewed earlier, their mission time restarts. However, the remaining mission time of the whole circuit is determined by its oldest component.

Sign off on the safety component replacement

Run this procedure

9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Front and back gratings slid upwards and removed

Mounting screws of the upper cover removed and cover lifted off

Fan power supply wires disconnected

Mounting screws of the fan removed

Mounting screws of the fan cover removed

Fan lifted off

New fan installed in reverse order

Run this procedure

ZCU-12 Memory Unit Replacement

Warning: Do not remove or insert the memory unit when the control unit is powered.

Drive stopped and electrical safety precautions followed

Upload a photo of the memory unit before removal

Clip at the side of the memory pulled up

Memory unit removed

Upload a photo of the new control unit before memory unit installation

Memory unit installed in reverse order

Sign off on the memory unit replacement

Run this procedure

Drive Module Replacement

WARNING! Do not use the module extraction/installation ramp with plinth heights that exceed the maximum allowed height.

Attach the module extraction/installation ramp carefully.

Make sure that the module does not fall over when you move it on the floor.

Do not roll the module on its wheels for a longer distance than what is required for inserting or extracting the module.

To prevent the drive module from falling, attach its top lifting lugs with chains to the cabinet before you push the module into the cabinet and pull it from the cabinet.

Push the module into the cabinet and pull it from the cabinet carefully preferably with help from another person.

Stop the drive and do the steps in section Electrical safety precautions before you start the work.

Unplug quick connector(s) at the right top corner of the control unit mounting plate.

Remove the control unit mounting plate.
