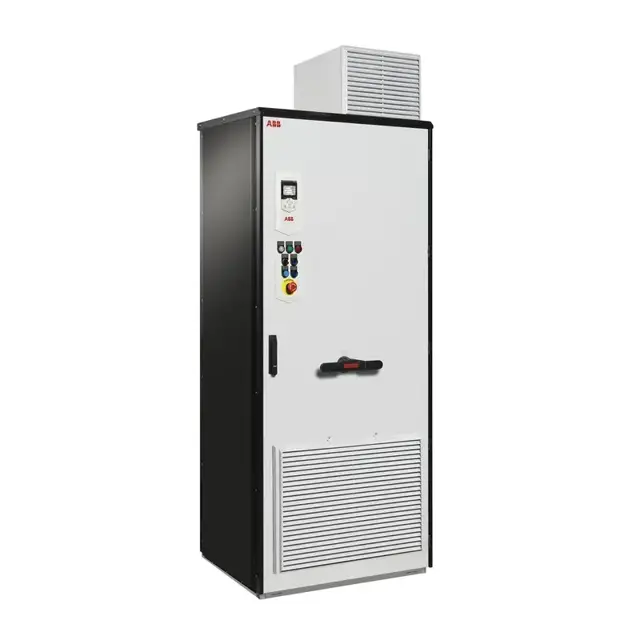

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0361A-5
Create an account to install this asset package.
Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0361A-5
Integrate maintenance plans directly into your work orders in MaintainX.
20 Yearly Safety component Replacement
Warning: This procedure requires trained personnel with PPE!
Check if the mission time of functional safety components is expired
If the mission time is expired, proceed with the following steps
Choose the type of renewal
Note: Renewal of the components in the safety function circuit is economical only with larger drives that have replaceable circuit boards and other components such as relays.
Check all the components that have been renewed
Enter the remaining mission time of the whole circuit
Sign off on the safety component replacement
Cleaning the Exterior of the Drive
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Select cleaning tools used
Select the type of detergent used
Prevented water from entering the drive
Sign off on the cleaning procedure
6 Yearly ZCU-12 Control Unit Battery Replacement
Warning: For trained personnel only
Drive stopped and electrical safety precautions followed
Battery ejector moved into the battery slot on the battery
Battery carefully pulled out of the battery holder
New CR2032 battery carefully put into the battery holder
Sign off on the battery replacement
6 Yearly IP54 (UL type 12) Roof Fan 60 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Front and back gratings lifted and removed
Mounting screws of the fan cover loosened
Fan cover lifted off
Fan supply wires disconnected
Mounting screws of the fan loosened
Fan lifted off
New fan installed in reverse order
9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed?
Front and back gratings lifted upwards and removed?
Mounting screws of the fan cover loosened?
Cover lifted off?
Fan supply wires disconnected?
Mounting screws of the fan loosened?
Fan lifted off?
New fan installed in reverse order?
Parts for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0361A-5
Access the parts list for your equipment in MaintainX.
Fuse IEC
170M6410
Fuse IEC
SC32AR69V630TF
Fuse UL
170M6410
Sine Filter
B84143V0390S229
Fuse IEC
170M6410
Fuse IEC
SC32AR69V630TF
Fuse UL
170M6410
Sine Filter
B84143V0390S229
Fuse IEC
170M6410
Fuse IEC
SC32AR69V630TF
Fuse UL
170M6410
Sine Filter
B84143V0390S229
