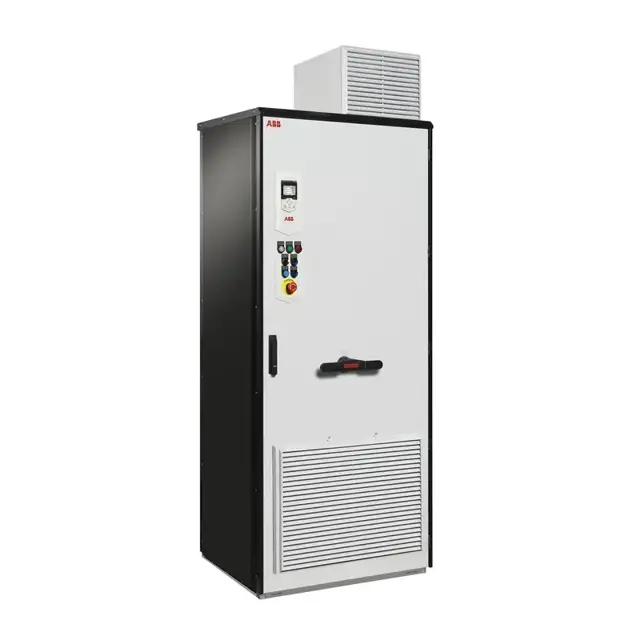

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0302A-5

Create an account to install this asset package.

Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0302A-5

Integrate maintenance plans directly into your work orders in MaintainX.

9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed?

Front and back gratings lifted and removed?

Mounting screws of the fan cover loosened?

Fan cover lifted off?

Fan supply wires disconnected?

Mounting screws of the fan loosened?

Fan lifted off?

New fan installed in reverse order?

Run this procedure

1 Yearly Drive Maintenance

Performance quality of supply voltage

Inspect spare parts

Performance DC circuit capacitors reforming

Inspect IP22 and IP42 air inlet and outlet meshes

Inspect tightness of terminals

Inspect dustiness, corrosion and temperature

ABB-SACE Air circuit breaker maintenance

Sign off on the yearly drive maintenance

Run this procedure

6 Yearly IP54 (UL type 12) Roof Fan 60 Hz Replacement

Drive stopped and electrical safety precautions followed

Front and back gratings lifted and removed

Mounting screws of the fan cover loosened

Fan cover lifted off

Fan supply wires disconnected

Mounting screws of the fan loosened

Fan lifted off

New fan installed in reverse order

Run this procedure

20 Yearly Safety component Replacement

Warning: This procedure requires trained personnel with PPE!

Check if the mission time of functional safety components is expired

If the mission time is expired, proceed with the following steps

Choose the type of renewal

Upload a photo of the renewed components

Enter the date of renewal

Sign off on the safety component replacement

Run this procedure

1 Yearly Heatsink Cleaning

WARNING! Use the required personal protective equipment. Wear protective gloves and long sleeves. Some parts have sharp edges.

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and electrical safety precautions followed

Drive module removed from the cabinet

Module cooling fan(s) removed

Heatsink cleaned with dry, clean and oil-free compressed air from bottom to top

Vacuum cleaner used at the air outlet to trap the dust

Cleaning performed in another room if there is a risk of dust entering adjoining equipment

Cooling fan reinstalled

Run this procedure
