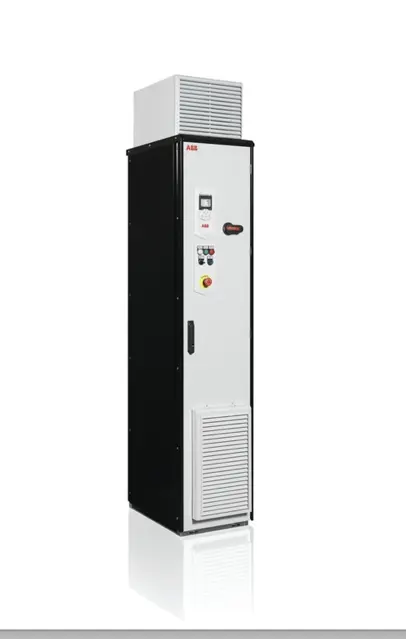

ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0119A-7
Need answers fast?
Explore the manual using AI.
The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0119A-7 is a robust solution for controlling motor speed and torque in industrial applications. Designed for efficiency and reliability, this drive enhances performance while reducing energy consumption, making it ideal for various automation needs.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0119A-7
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0119A-7
Create an account to install this asset package.
Maintenance Plans for ABB Enclosed Variable Speed/Frequency Drive Model ACS880-07-0119A-7
Integrate maintenance plans directly into your work orders in MaintainX.
9 Yearly Auxiliary Cooling Main Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Power supply wires unplugged from the control unit terminal X208:FAN2
Fan lifted up
New fan installed with arrow pointing up
Counter reset in group 5 in the primary control program
Sign off on the fan replacement
9 Yearly Cabinet “door" Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Mounting plate above the fan removed
Four mounting screws of the fan mounting plate loosened
Mounting plate lifted upwards
Power supply wires unplugged
Fan mounting plate lifted off
Fan removed from the mounting plate
New fan installed in reverse order
Cleaning the Interior of the Cabinet
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.
Drive stopped and electrical safety precautions followed
Cabinet door opened
Interior of the cabinet cleaned using a vacuum cleaner and a soft brush
Air inlets of the fans and air outlets of the modules (top) cleaned
Air inlet gratings (if any) on the door cleaned
Door closed
Sign off on the cleaning procedure
9 Yearly Drive Module Main Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Drive module slid forward
Mounting screws of the fan mounting plate undone
Fan mounting plate pulled down from the side edge
Power supply wires unplugged
Fan mounting plate lifted off
Fan removed from the mounting plate
New fan installed in reverse order
6 Yearly ZCU-14 Control Unit Battery Replacement
Warning: For trained electrical professionals only
Drive stopped and electrical safety precautions followed
Upload a photo of the control unit before starting the work
M4×8 (T20) screws at the ends of the control unit removed
XD2D terminal block removed to see the battery
Edge of the control unit cover on the side with the I/O terminal blocks lifted
Old battery pulled out of the battery holder
Upload a photo of the new CR2032 battery
New CR2032 battery inserted into the battery holder
Parts for ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0119A-7
Access the parts list for your equipment in MaintainX.
Fuse IEC
170M3816D
Sine Filter
B84143V0130S230
Fuse UL
DFJ-250
Fuse IEC
170M3816D
Sine Filter
B84143V0130S230
Fuse UL
DFJ-250
Fuse IEC
170M3816D
Sine Filter
B84143V0130S230
Fuse UL
DFJ-250
