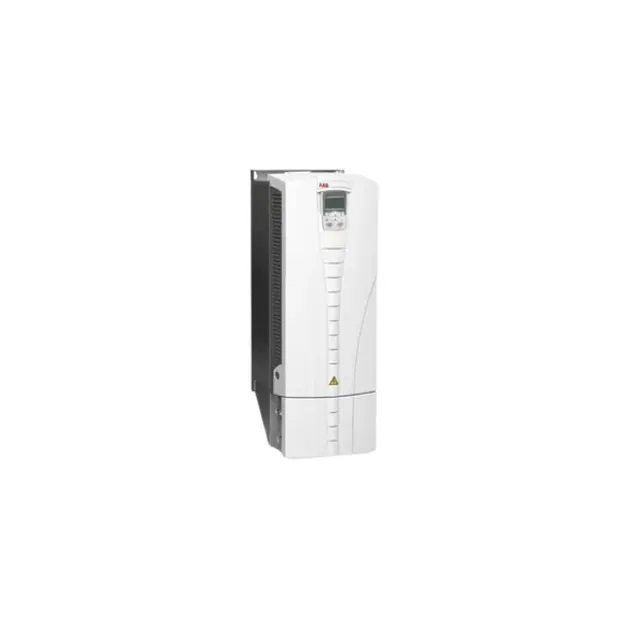

ABB Adjustable Speed AC Drive ACS550-U1-088A-2

Create an account to install this asset package.

Maintenance Plans for ABB Adjustable Speed AC Drive Model ACS550-U1-088A-2

Integrate maintenance plans directly into your work orders in MaintainX.

3 Yearly Internal Enclosure Cooling Fan Replacemnt

Warning: Ensure power is removed from the drive before starting the procedure.

Power removed from the drive?

Front cover removed?

Barbed retaining clips released?

Housing removed from the drive?

Fan cable disconnected?

Note: The fan air flow is up (refer to the arrow on fan). The fan wire harness is toward the front. The notched housing barb is located in the right-rear corner. The fan cable connects just forward of the fan at the top of the drive.

Fan installed in correct orientation?

Fan wire harness positioned correctly?

Run this procedure

6 Yearly Main Cooling Fan Replacement

Warning: Only trained personnel should perform this procedure

Ensure power is removed from the drive before starting

Power removed from the drive

Drive cover removed

Select the frame size

Fan cover removed

Fan cable disconnected

Fan reinstalled

Power restored

Run this procedure

6 Monthly Heatsink Maintenance

The heatsink fins accumulate dust from the cooling air. Since a dusty heatsink is less efficient at cooling the drive, overtemperature faults become more likely.

In a “normal” environment (not dusty, not clean) check the heatsink annually, in a dusty environment check more often.

Clean the heatsink as follows (when necessary): 1. Remove power from the drive.

2. Remove the cooling fan.

3. Blow clean compressed air (not humid) from bottom to top and simultaneously use a vacuum cleaner at the air outlet to trap the dust.

NOTE: If there is a risk of the dust entering adjoining equipment, perform the cleaning in another room.

4. Reinstall the cooling fan.

5. Restore power.;

Run this procedure
