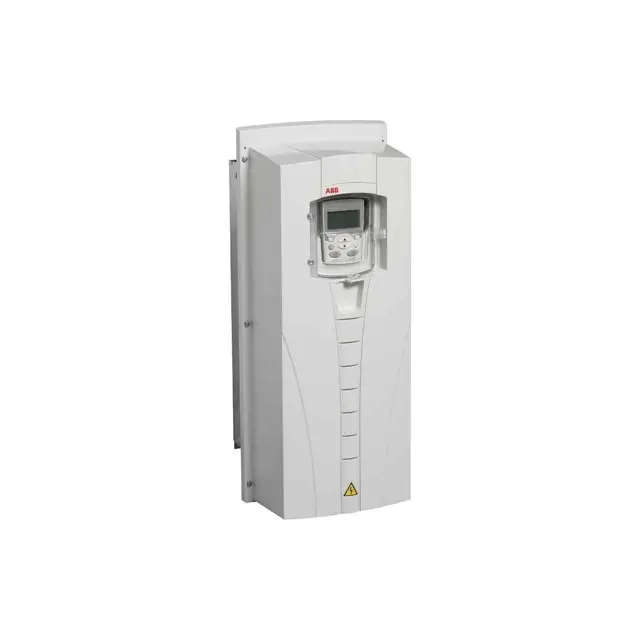

ABB Adjustable Speed AC Drive ACS550-U1-017A-2

Need answers fast?
Explore the manual using AI.

View PDF Manual

Explore Maintenance Plans

The ABB Adjustable Speed AC Drive ACS550-U1-017A-2 is a versatile and efficient solution for controlling motor speed and torque in various industrial applications. Designed for reliability and performance, this drive enhances energy efficiency and operational flexibility, making it ideal for a wide range of automation needs.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB Adjustable Speed AC Drive ACS550-U1-017A-2

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB Adjustable Speed AC Drive ACS550-U1-017A-2

Create an account to install this asset package.

Maintenance Plans for ABB Adjustable Speed AC Drive Model ACS550-U1-017A-2

Integrate maintenance plans directly into your work orders in MaintainX.

3 Yearly Internal Enclosure Cooling Fan Replacemnt

Warning: Ensure power is removed from the drive before starting the procedure.

Power removed from the drive?

Front cover removed?

Barbed retaining clips released?

Housing removed from the drive?

Fan cable disconnected?

Note: The fan air flow is up (refer to the arrow on fan). The fan wire harness is toward the front. The notched housing barb is located in the right-rear corner. The fan cable connects just forward of the fan at the top of the drive.

Fan installed with correct orientation?

Fan cable connected correctly?

Run this procedure

6 Yearly Main Cooling Fan Replacement

Warning: Only trained personnel should perform this procedure.

Ensure power is removed from the drive before starting.

Power removed from the drive?

Drive cover removed?

Select the frame size

For R1, R2: Press together the retaining clips on the fan cover sides, and lift.

For R3, R4: Press in on the lever located on the left side of the fan mount, and rotate the fan up and out.

Fan cable disconnected?

Fan reinstalled in reverse order?

Run this procedure

6 Monthly Heatsink Maintenance

The heatsink fins accumulate dust from the cooling air. Since a dusty heatsink is less efficient at cooling the drive, overtemperature faults become more likely.

In a “normal” environment (not dusty, not clean) check the heatsink annually, in a dusty environment check more often.

Clean the heatsink as follows (when necessary): 1. Remove power from the drive.

2. Remove the cooling fan.

3. Blow clean compressed air (not humid) from bottom to top and simultaneously use a vacuum cleaner at the air outlet to trap the dust.

NOTE: If there is a risk of the dust entering adjoining equipment, perform the cleaning in another room.

4. Reinstall the cooling fan.

5. Restore power.;

Run this procedure
