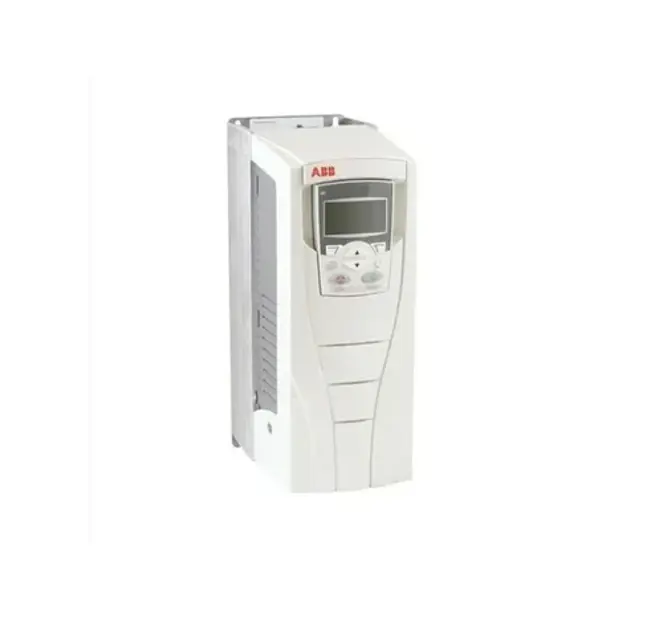

ABB Adjustable Speed AC Drive ACS550-01-246A-4
Create an account to install this asset package.
Maintenance Plans for ABB Adjustable Speed AC Drive Model ACS550-01-246A-4
Integrate maintenance plans directly into your work orders in MaintainX.
3 Yearly Internal Enclosure Cooling Fan Replacemnt
Power removed from the drive
Front cover removed
Fan lifted out and cable disconnected
Fan installed in reverse
Power restored
6 Monthly Heatsink Maintenance
Warning: Always remove power from the drive before starting the maintenance.
Is the environment dusty?
If the environment is dusty, increase the frequency of heatsink checks.
Heatsink fins free of dust?
If heatsink fins are not free of dust, follow the cleaning procedure.
Heatsink cleaning procedure
Sign off on the heatsink maintenance
6 Yearly Main Cooling Fan Replacement
Warning: Only trained personnel should perform this procedure
Power removed from the drive?
Upload a photo of the fan casing after removing the screw
Cable connector disconnected?
Upload a photo of the casing after removing the fan
New fan placed onto the casing’s pins?
Upload a photo of the casing after reinstalling the fan
Power restored?
Sign off on the fan replacement
Parts for ABB Adjustable Speed AC Drive ACS550-01-246A-4
Access the parts list for your equipment in MaintainX.
Fuse
JJS-350
Flange Mounting Kit
AC8-FLNGMT-R6
Ring Lug
YAV6C-L2
Ring Lug
CCL-6-38
Ring Lug
YA4C-L4BOX
Fuse
JJS-350
Flange Mounting Kit
AC8-FLNGMT-R6
Ring Lug
YAV6C-L2
Ring Lug
CCL-6-38
Ring Lug
YA4C-L4BOX
Fuse
JJS-350
Flange Mounting Kit
AC8-FLNGMT-R6
Ring Lug
YAV6C-L2
Ring Lug
CCL-6-38
Ring Lug
