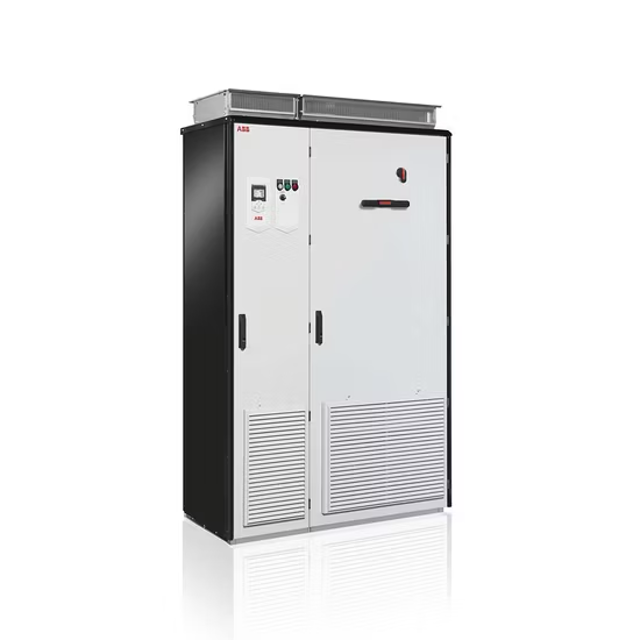

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0820A-5 ACS880-07-0820A-5

Create an account to install this asset package.

Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0820A-5 Model ACS880-07-0820A-5

Integrate maintenance plans directly into your work orders in MaintainX.

9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Front and back gratings slid upwards and removed

Mounting screws of the upper cover removed and cover lifted off

Fan power supply wires disconnected

Mounting screws of the fan removed

Mounting screws of the fan cover removed

Fan lifted off

New fan installed in reverse order

Run this procedure

9 Yearly Circuit Board Compartment Cooling Fan Replacement

Drive stopped and electrical safety precautions followed

Drive module removed from the cabinet

Fastening screw of the fan enclosure undone

Power supply cable of the fan unplugged

New fan installed in reverse order

Counter reset in group 5 in the primary control program

Sign off on the fan replacement

Run this procedure

1 Yearly Heatsink Cleaning

WARNING! Use the required personal protective equipment. Wear protective gloves and long sleeves. Some parts have sharp edges.

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and electrical safety precautions followed

Drive module removed from the cabinet

Module cooling fan(s) removed

Heatsink cleaned with dry, clean and oil-free compressed air from bottom to top and vacuum cleaner used at the air outlet to trap the dust

Cooling fan reinstalled

Sign off on the heatsink cleaning

Run this procedure

ZCU-14 Memory Unit Replacement

WARNING! Do not remove or insert the memory unit when the control unit is powered.

Drive stopped and electrical safety precautions followed?

Clip of the memory unit pulled forward?

Memory unit taken off?

Memory unit replaced in reverse order?

Sign off on the memory unit replacement

Run this procedure

20 Yearly Safety component Replacement

Warning: This procedure requires trained personnel with PPE!

Check if the mission time of functional safety components is expired

If the mission time is expired, proceed with the following steps

Choose the type of renewal

Note: Renewal of the components in the safety function circuit is economical only with larger drives that have replaceable circuit boards and other components such as relays.

Check all the components that have been renewed

The remaining mission time of the whole circuit is determined by its oldest component.

Sign off on the safety component replacement

Run this procedure
