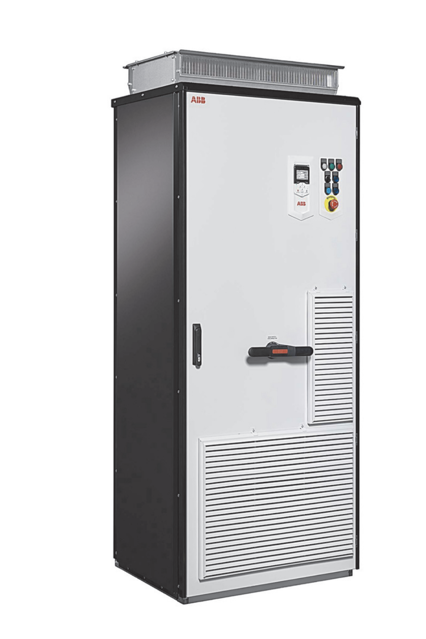

The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0585A-3 is designed for efficient motor control and energy savings in industrial applications. This versatile drive offers advanced features for precise speed regulation and is ideal for various automation tasks, ensuring optimal performance and reliability.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0585A-3 ACS880-07-0585A-3

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0585A-3 ACS880-07-0585A-3

Create an account to install this asset package.

Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0585A-3 Model ACS880-07-0585A-3

Integrate maintenance plans directly into your work orders in MaintainX.

6 Yearly ZCU-14 Control Unit Battery Replacement

Warning: For trained personnel only. Follow safety instructions of the drive.

Drive stopped and electrical safety precautions followed

M4×8 (T20) screws at the ends of the control unit removed

XD2D terminal block removed to see the battery

Edge of the control unit cover on the side with the I/O terminal blocks carefully lifted

Battery pulled out of the battery holder

New CR2032 battery inserted into the battery holder

Control unit cover closed

M4×8 (T20) screws tightened

Run this procedure

Cleaning the Interior of the Cabinet

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and electrical safety precautions followed

Cabinet door opened

Interior of the cabinet cleaned using a vacuum cleaner and a soft brush

Air inlets of the fans and air outlets of the modules (top) cleaned

Air inlet gratings (if any) on the door cleaned

Door closed

Sign off on the cleaning procedure

Run this procedure

9 Yearly Circuit Board Compartment Cooling Fan Replacement

Drive stopped and electrical safety precautions followed

Drive module removed from the cabinet

Fastening screw of the fan enclosure undone

Power supply cable of the fan unplugged

New fan installed in reverse order

Counter reset in group 5 in the primary control program

Sign off on the fan replacement

Run this procedure

6 Yearly ZCU-12 Control Unit Battery Replacement

Warning: For trained personnel only

Drive stopped and electrical safety precautions taken

Battery ejector moved into the battery slot on the battery

Old battery carefully pulled out of the battery holder

New CR2032 battery carefully put into the battery holder

Sign off on the battery replacement

Run this procedure

Drive Module Replacement

WARNING! Do not use the module extraction/installation ramp with plinth heights that exceed the maximum allowed height.

Attach the module extraction/installation ramp carefully.

Make sure that the module does not fall over when you move it on the floor.

Do not roll the module on its wheels for a longer distance than what is required for inserting or extracting the module.

To prevent the drive module from falling, attach its top lifting lugs with chains to the cabinet before you push the module into the cabinet and pull it from the cabinet.

Stop the drive and do the steps in section Electrical safety precautions before you start the work.

Unplug quick connector(s) at the right top corner of the control unit mounting plate.

Remove the control unit mounting plate.

Remove the shroud.

Run this procedure
