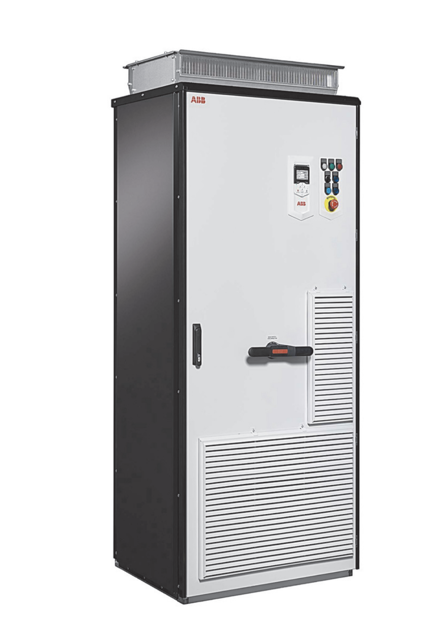

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0583A-5 ACS880-07-0583A-5

WARNING! Use the required personal protective equipment. Wear protective gloves and long sleeves. Some parts have sharp edges.

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and electrical safety precautions followed

Drive module removed from the cabinet

Cleaned with dry, clean and oil-free compressed air from bottom to top and used a vacuum cleaner at the air outlet to trap the dust

Sign off on the heatsink cleaning

Warning: Do not remove or insert the memory unit when the control unit is powered.

Warning: Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur.

Warning: If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed?

Clip of the memory unit pulled forward?

Memory unit replaced in reverse order?

Sign off on the memory unit replacement

Check the dustiness of the air inlet meshes

If the dust cannot be removed by vacuum cleaning from outside through the grating holes with a small nozzle, proceed as follows:

Stop the drive and do the steps in section Electrical safety precautions before you start the work

Remove the fasteners at the top of the grating

Lift the grating and pull it away from the door

Place the new filter mat in the grating the metal wire side facing the door

Reinstall the grating in reverse order

Sign off on the filter replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Front and back gratings slid upwards and removed

Mounting screws of the upper cover removed and cover lifted off

Fan power supply wires disconnected

Mounting screws of the fan removed

Mounting screws of the fan cover removed

New fan installed in reverse order

Warning: For trained personnel only

Drive stopped and electrical safety precautions followed

Battery ejector moved into the battery slot on the battery

Old battery carefully pulled out of the battery holder

New CR2032 battery carefully put into the battery holder

Sign off on the battery replacement
