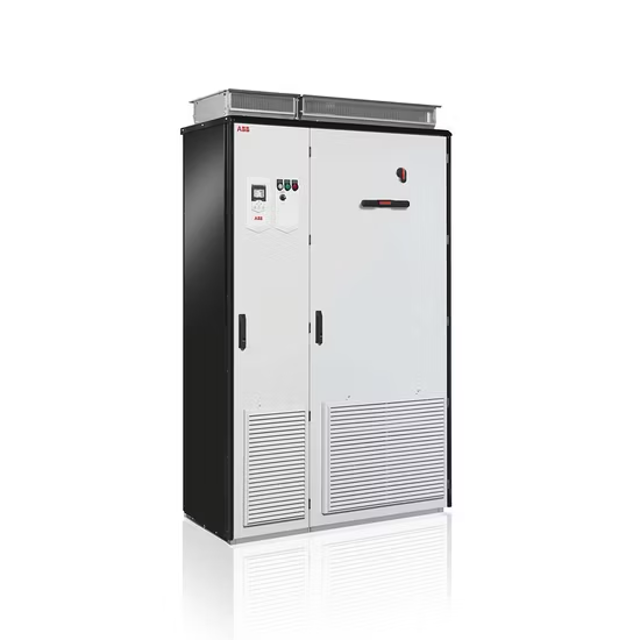

The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0522A-7 is designed for optimal motor control and energy efficiency in industrial applications. This advanced drive offers flexible integration and reliable performance, making it ideal for various automation needs. Experience enhanced productivity and reduced operational costs with ABB's innovative technology.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0522A-7 ACS880-07-0522A-7

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0522A-7 ACS880-07-0522A-7

Create an account to install this asset package.

Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0522A-7 Model ACS880-07-0522A-7

Integrate maintenance plans directly into your work orders in MaintainX.

9 Yearly Drive Module Main Fan Replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Drive module removed from the cabinet

Support legs of the pedestal opened

Two screws that fasten the fan assembly plate undone

Fan assembly plate tilted down

Power supply wires of the fans disconnected

Fan assembly removed from the drive module

Fastening screws of the fan(s) undone and fan(s) removed from the assembly plate

Run this procedure

9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement

Drive stopped and electrical safety precautions followed

Front and back gratings slid upwards and removed

Mounting screws of the upper cover removed and cover lifted off

Fan power supply wires disconnected

Mounting screws of the fan removed

Mounting screws of the fan cover removed

Fan lifted off

New fan installed in reverse order

Run this procedure

ZCU-14 Memory Unit Replacement

WARNING! Do not remove or insert the memory unit when the control unit is powered.

Drive stopped and electrical safety precautions followed?

Clip of the memory unit pulled forward?

Memory unit taken off?

Memory unit replaced in reverse order?

Sign off on the memory unit replacement

Run this procedure

1 Yearly Door Filter IP54 Replacement

Check the dustiness of the air inlet meshes

If the dust cannot be removed by vacuum cleaning from outside through the grating holes with a small nozzle, proceed as follows:

Stop the drive and do the steps in section Electrical safety precautions before you start the work.

Remove the fasteners at the top of the grating.

Lift the grating and pull it away from the door.

Remove the air filter mat.

Place the new filter mat in the grating the metal wire side facing the door.

Reinstall the grating in reverse order.

Sign off on the filter replacement

Run this procedure

Cleaning the Interior of the Cabinet

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and electrical safety precautions followed

Cabinet door opened

Interior of the cabinet cleaned using a vacuum cleaner and a soft brush

Air inlets of the fans and air outlets of the modules (top) cleaned

Air inlet gratings (if any) on the door cleaned

Door closed

Sign off on the cleaning procedure

Run this procedure
