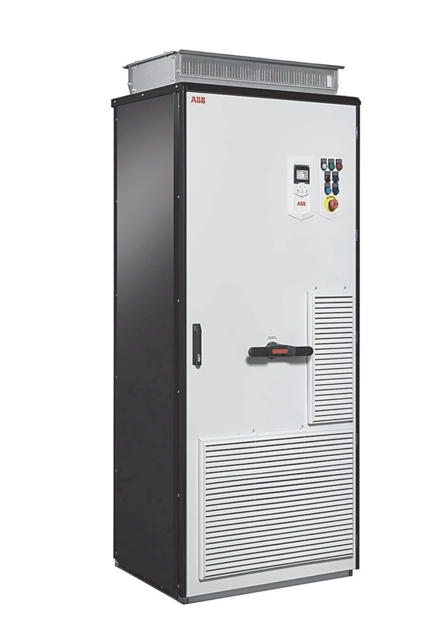

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0505A-3 ACS880-07-0505A-3
Need answers fast?
Explore the manual using AI.
The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0505A-3 is designed for efficient motor control and energy savings in industrial applications. This versatile drive offers advanced features for precise speed and torque management, ensuring optimal performance and reliability in various environments.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0505A-3 ACS880-07-0505A-3
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0505A-3 ACS880-07-0505A-3
Create an account to install this asset package.
Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0505A-3 Model ACS880-07-0505A-3
Integrate maintenance plans directly into your work orders in MaintainX.
Cleaning the Exterior of the Drive
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Select cleaning tools used
Select cleaning solution used
WARNING! Prevent water from entering the drive. Never use excessive amount of water, a hose, steam, etc.
Drive cleaned without water entering
Sign off on the cleaning procedure
9 Yearly Drive Module Main Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Drive module removed from the cabinet
Support legs of the pedestal opened
Two screws that fasten the fan assembly plate undone
Fan assembly plate tilted down
Power supply wires of the fans disconnected
Fan assembly removed from the drive module
Fastening screws of the fan(s) undone and fan(s) removed from the assembly plate
9 Yearly Cabinet “door" Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Mounting plate above the fan removed
Four mounting screws of the fan mounting plate loosened
Mounting plate lifted upwards
Power supply wires unplugged
Fan mounting plate lifted off
Fan removed from the mounting plate
New fan installed in reverse order
9 Yearly Circuit Board Compartment Cooling Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Drive module removed from the cabinet
Fastening screw of the fan enclosure undone
Power supply cable of the fan unplugged
New fan installed in reverse order
Counter reset in group 5 in the primary control program
Sign off on the fan replacement
1 Yearly Door Filter IP54 Replacement
Check the dustiness of the air inlet meshes
If the dust cannot be removed by vacuum cleaning from outside through the grating holes with a small nozzle, proceed as follows:
Stop the drive and do the steps in section Electrical safety precautions before you start the work.
Remove the fasteners at the top of the grating.
Lift the grating and pull it away from the door.
Remove the air filter mat.
Place the new filter mat in the grating the metal wire side facing the door.
Reinstall the grating in reverse order.
Sign off on the filter replacement
Parts for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0505A-3 ACS880-07-0505A-3
Access the parts list for your equipment in MaintainX.
Fuse IEC
SC32AR69V800TF
Fuse IEC
170M6412
Sine Filter
NSIN0900-6
Fuse IEC
SC32AR69V800TF
Fuse IEC
170M6412
Sine Filter
NSIN0900-6
Fuse IEC
SC32AR69V800TF
Fuse IEC
170M6412
Sine Filter
NSIN0900-6
