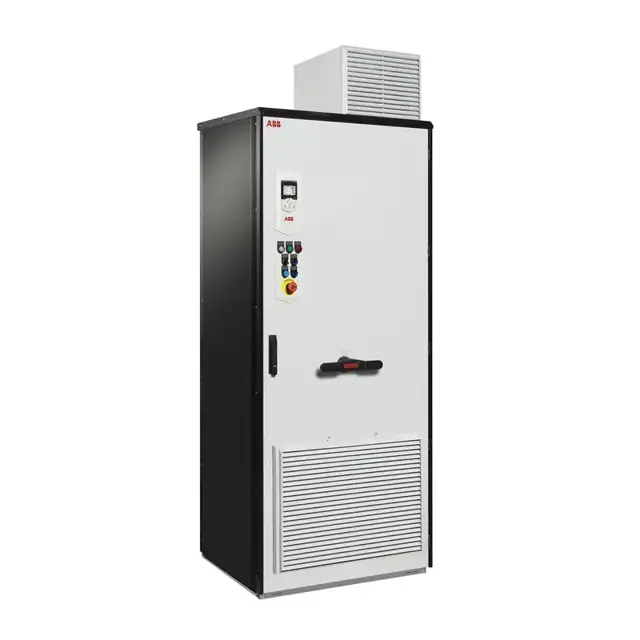

The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0363A-3 is designed for efficient motor control and energy savings in industrial applications. This advanced drive offers robust performance, flexibility, and reliability, making it ideal for various automation needs. Optimize your operations with ABB's cutting-edge technology.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0363A-3 ACS880-07-0363A-3

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0363A-3 ACS880-07-0363A-3

Create an account to install this asset package.

Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0363A-3 Model ACS880-07-0363A-3

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Heatsink Cleaning

WARNING! Use the required personal protective equipment. Wear protective gloves and long sleeves. Some parts have sharp edges.

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

Drive stopped and electrical safety precautions followed

Drive module removed from the cabinet

Module cooling fan(s) removed

Heatsink cleaned with dry, clean and oil-free compressed air from bottom to top

Vacuum cleaner used at the air outlet to trap the dust

Cooling fan reinstalled

Sign off on the heatsink cleaning

Run this procedure

9 Yearly Cabinet “door" Fan Replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Mounting plate above the fan removed

Four mounting screws of the fan mounting plate loosened

Mounting plate lifted upwards

Power supply wires unplugged

Fan mounting plate lifted off

Fan removed from the mounting plate

New fan installed in reverse order

Run this procedure

9 Yearly Drive Module Main Fan Replacement

Drive stopped and electrical safety precautions followed

Drive module slid forward as described under Replacing the drive module

Two mounting screws of the fan mounting plate undone

Mounting plate turned downwards

Fan power supply wires disconnected

Fan mounting plate removed

Fan removed by undoing the two mounting screws

New fan installed in reverse order

Run this procedure

20 Yearly Safety component Replacement

Warning: This procedure requires trained personnel with PPE!

Check if the mission time of functional safety components is expired

If the mission time is expired, the certification and SIL/PL classification of the safety function is terminated

Choose the renewal option

Note: Renewal of components is economical only with larger drives that have replaceable circuit boards and other components such as relays

Check all the components that have been renewed

The remaining mission time of the whole circuit is determined by its oldest component

Sign off on the safety component replacement

Run this procedure

Drive Module Replacement

Warning: Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Warning: Make sure that the cabinet is secured to the floor. If not, the cabinet can topple over when the heavy drive module is slid forward in front of the cabinet. This can cause injury or death, and damage to the equipment.

Drive stopped and electrical safety precautions followed

Shroud removed

Mounting plate above the shroud removed

Warning: For drives with options +G300, +G301, +G307 and +G313: Before you remove the mounting plate, disconnect the external power sources supplying the options.

Pt100 and thermistor relay mounting plate removed (for drives with options +L505 and +L506)

Control cables disconnected from terminal block X504 and terminal block removed (for drives with additional terminal block option +L504)

Screws on the right-hand side of the swing-out frame loosened and frame opened

Run this procedure
