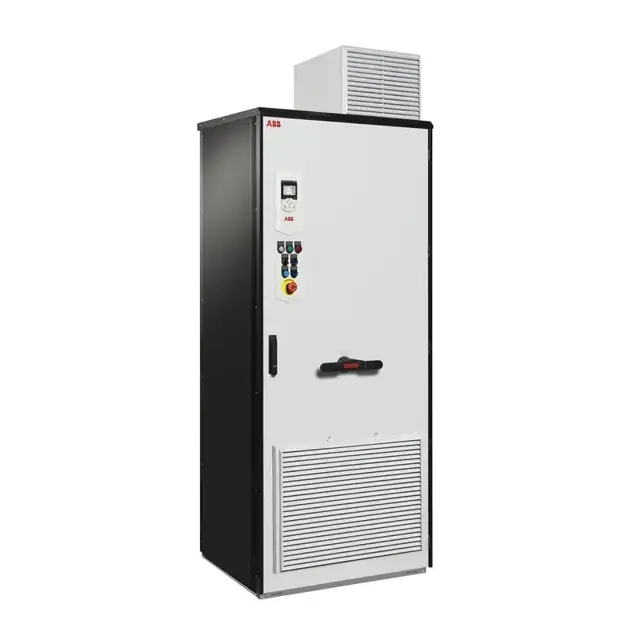

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0361A-5 ACS880-07-0361A-5
Need answers fast?
Explore the manual using AI.
The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0361A-5 is designed for optimal motor control and energy efficiency in industrial applications. This advanced drive offers robust performance, reliability, and flexibility, making it ideal for various automation needs. Enhance your operations with this state-of-the-art frequency drive from ABB.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0361A-5 ACS880-07-0361A-5
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0361A-5 ACS880-07-0361A-5
Create an account to install this asset package.
Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0361A-5 Model ACS880-07-0361A-5
Integrate maintenance plans directly into your work orders in MaintainX.
6 Yearly ZCU-12 Control Unit Battery Replacement
Warning: For trained personnel only
Drive stopped and electrical safety precautions followed
Battery ejector moved into the battery slot on the battery
Battery carefully pulled out of the battery holder
New CR2032 battery carefully put into the battery holder
Sign off on the battery replacement
9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed?
Front and back gratings lifted upwards and removed?
Mounting screws of the fan cover loosened?
Cover lifted off?
Fan supply wires disconnected?
Mounting screws of the fan loosened?
Fan lifted off?
New fan installed in reverse order?
9 Yearly Cabinet “door" Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Mounting plate above the fan removed
Four mounting screws of the fan mounting plate loosened
Mounting plate lifted upwards
Power supply wires unplugged
Fan mounting plate lifted off
Fan removed from the mounting plate
New fan installed in reverse order
1 Yearly Door Filter IP54 Replacement
Check the dustiness of the air inlet meshes
If the dust cannot be removed by vacuum cleaning from outside through the grating holes with a small nozzle, proceed as follows:
Stop the drive and do the steps in section Electrical safety precautions before you start the work.
Remove the fasteners at the top of the grating.
Lift the grating and pull it away from the door.
Remove the air filter mat.
Place the new filter mat in the grating the metal wire side facing the door.
Reinstall the grating in reverse order.
Sign off on the filter replacement
Cleaning the Exterior of the Drive
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Select cleaning tools used
Select the type of detergent used
Prevented water from entering the drive
Sign off on the cleaning procedure
Parts for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0361A-5 ACS880-07-0361A-5
Access the parts list for your equipment in MaintainX.
Fuse IEC
SC32AR69V630TF
Sine Filter
B84143V0390S229
Fuse UL
170M6410
Fuse IEC
170M6410
Fuse IEC
SC32AR69V630TF
Sine Filter
B84143V0390S229
Fuse UL
170M6410
Fuse IEC
170M6410
Fuse IEC
SC32AR69V630TF
Sine Filter
B84143V0390S229
Fuse UL
170M6410
Fuse IEC
170M6410
