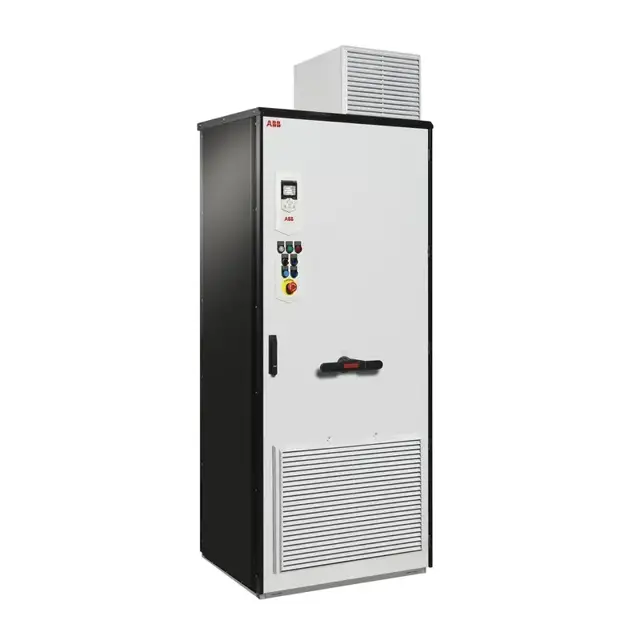

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0302A-5 ACS880-07-0302A-5
Need answers fast?
Explore the manual using AI.
The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0302A-5 is designed for efficient motor control and energy savings in industrial applications. This advanced drive offers flexibility, reliability, and high performance, making it ideal for various automation needs. Optimize your operations with this robust solution from ABB.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0302A-5 ACS880-07-0302A-5
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0302A-5 ACS880-07-0302A-5
Create an account to install this asset package.
Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0302A-5 Model ACS880-07-0302A-5
Integrate maintenance plans directly into your work orders in MaintainX.
9 Yearly Drive Module Main Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Drive module slid forward as described under Replacing the drive module
Two mounting screws of the fan mounting plate undone
Mounting plate turned downwards
Fan power supply wires disconnected
Fan mounting plate removed
Fan removed by undoing the two mounting screws
New fan installed in reverse order
ZCU-12 Memory Unit Replacement
Warning: Do not remove or insert the memory unit when the control unit is powered.
Drive stopped and electrical safety precautions followed
Upload a photo of the memory unit before removal
Clip at the side of the memory pulled up
Memory unit removed
Upload a photo of the memory unit after removal
Memory unit installed in reverse order
Upload a photo of the memory unit after installation
Sign off on the memory unit replacement
6 Yearly ZCU-12 Control Unit Battery Replacement
Warning: For trained personnel only
Drive stopped and electrical safety precautions taken
Upload a photo of the battery ejector in the battery slot
Battery carefully pulled out of the battery holder
Upload a photo of the new CR2032 battery
New CR2032 battery carefully put into the battery holder
Sign off on the battery replacement
1 Yearly Heatsink Cleaning
WARNING! Use the required personal protective equipment. Wear protective gloves and long sleeves. Some parts have sharp edges.
WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.
Drive stopped and electrical safety precautions followed
Drive module removed from the cabinet
Module cooling fan(s) removed
Heatsink cleaned with dry, clean and oil-free compressed air from bottom to top
Vacuum cleaner used at the air outlet to trap the dust
Cleaning performed in another room if there is a risk of dust entering adjoining equipment
Cooling fan reinstalled
20 Yearly Safety component Replacement
Warning: This procedure requires trained personnel with PPE!
Check if the mission time of functional safety components is expired
If the mission time is expired, proceed with the following steps
Choose the type of renewal
Upload a photo of the renewed components
Enter the date of renewal
Sign off on the safety component replacement
Parts for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0302A-5 ACS880-07-0302A-5
Access the parts list for your equipment in MaintainX.
Fuse UL
170M6410
Fuse UL
170M6410
Fuse UL
170M6410
