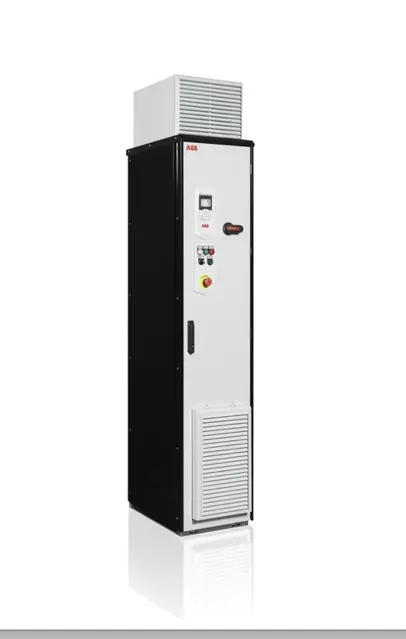

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0260A-5 ACS880-07-0260A-5
Need answers fast?
Explore the manual using AI.
The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0260A-5 is designed for efficient motor control and energy savings in industrial applications. This advanced drive offers flexible installation options and robust performance, making it ideal for a wide range of automation tasks. Optimize your operations with ABB's reliable technology.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0260A-5 ACS880-07-0260A-5
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0260A-5 ACS880-07-0260A-5
Create an account to install this asset package.
Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0260A-5 Model ACS880-07-0260A-5
Integrate maintenance plans directly into your work orders in MaintainX.
1 Yearly Heatsink Cleaning
WARNING! Use the required personal protective equipment. Wear protective gloves and long sleeves. Some parts have sharp edges.
WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.
Drive stopped and electrical safety precautions followed
Drive module removed from the cabinet
Module cooling fan(s) removed
Cleaned heatsink with dry, clean and oil-free compressed air from bottom to top and used a vacuum cleaner at the air outlet to trap the dust
Reinstalled the cooling fan
Sign off on the heatsink cleaning
9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed?
Front grating lifted upwards and removed?
Fastening screws of the front plate loosened and plate removed?
Fan supply wires disconnected?
Mounting screws of the fan loosened?
Fan pulled out?
New fan installed in reverse order?
Sign off on the fan replacement
ZCU-12 Memory Unit Replacement
Warning: Do not remove or insert the memory unit when the control unit is powered.
Drive stopped and electrical safety precautions followed
Upload a photo of the memory unit before removal
Clip at the side of the memory pulled up
Memory unit removed
Upload a photo of the new control unit before memory unit installation
Memory unit installed in reverse order
Sign off on the memory unit replacement
6 Yearly ZCU-14 Control Unit Battery Replacement
Warning: For trained electrical professionals only
Drive stopped and electrical safety precautions followed
Upload a photo of the control unit with M4×8 (T20) screws removed
Upload a photo of the control unit with XD2D terminal block removed
Control unit cover lifted on the side with the I/O terminal blocks
Upload a photo of the old battery removed from the battery holder
Upload a photo of the new CR2032 battery in the battery holder
Control unit cover closed
Upload a photo of the control unit with M4×8 (T20) screws tightened
6 Yearly IP54 (UL type 12) Roof Fan 60 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Front grating lifted upwards and removed
Fastening screws of the front plate loosened and plate removed
Fan supply wires disconnected
Mounting screws of the fan loosened
Fan pulled out
New fan installed in reverse order
Sign off on the fan replacement
Parts for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0260A-5 ACS880-07-0260A-5
Access the parts list for your equipment in MaintainX.
Sine Filter
B84143V0230S229
Fuse UL
DFJ-400
Fuse IEC
170M5810D
Sine Filter
B84143V0230S229
Fuse UL
DFJ-400
Fuse IEC
170M5810D
Sine Filter
B84143V0230S229
Fuse UL
DFJ-400
Fuse IEC
170M5810D
