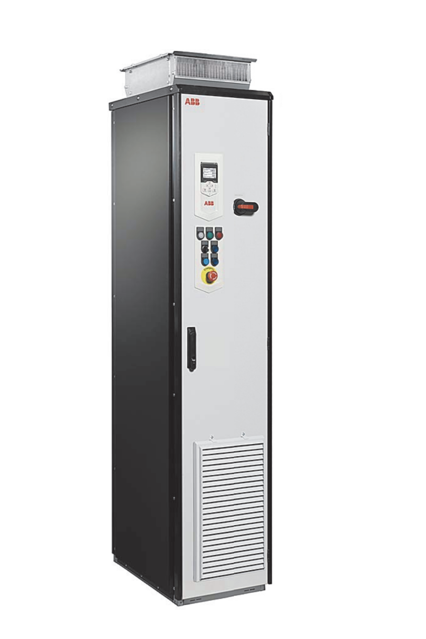

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0240A-5 ACS880-07-0240A-5

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

WARNING! Make sure that the cabinet is secured to the floor. If not, the cabinet can topple over when the heavy drive module is slid forward in front of the cabinet. This can cause injury or death, and damage to the equipment.

Stop the drive and do the steps in section Electrical safety precautions before you start the work.

For drives with options +L505 and +L506: Remove the shroud.

For drives with options +L505 and +L506: Remove the Pt100 and thermistor relay mounting plate by loosening the two mounting screws and lifting the mounting plate up.

Remove the drive module main fan.

Undo the screws on the right-hand side of the swing-out frame.

Undo the hinge screw at the top and bottom of the swing-out frame to enable the frame to open aside far enough.

Unplug the control wire terminals at the right-hand side of the cabinet.

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Power supply wires unplugged from the control unit terminal X208:FAN2

New fan installed in reverse order with arrow pointing up

Counter reset in group 5 in the primary control program

Sign off on the fan replacement

Warning: For trained personnel only

Drive stopped and electrical safety precautions taken

Battery ejector moved into the battery slot on the battery

Old battery carefully pulled out of the battery holder

New CR2032 battery carefully put into the battery holder

Sign off on the battery replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Front grating lifted upwards and removed

Fastening screws of the front plate loosened and plate removed

Mounting screws of the fan loosened

New fan installed in reverse order

Sign off on the fan replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

Select the type of detergent used

Prevented water from entering the drive

Sign off on the cleaning procedure
