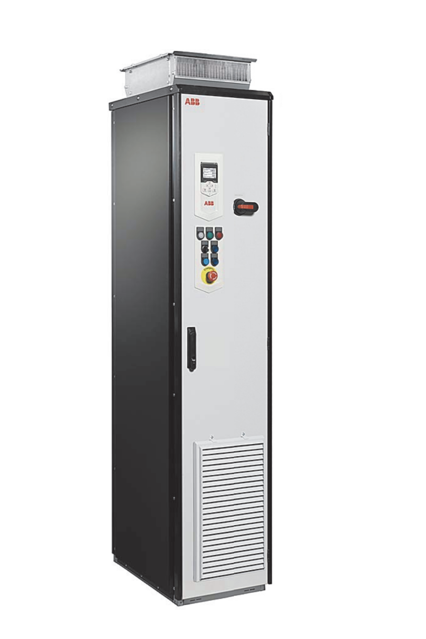

The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0206A-3 is designed for efficient motor control and energy savings in industrial applications. This advanced drive offers flexible integration, robust performance, and reliable operation, making it ideal for various automation needs. Optimize your processes with ABB's cutting-edge technology.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0206A-3 ACS880-07-0206A-3

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0206A-3 ACS880-07-0206A-3

Create an account to install this asset package.

Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0206A-3 Model ACS880-07-0206A-3

Integrate maintenance plans directly into your work orders in MaintainX.

Drive Module Replacement

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

WARNING! Make sure that the cabinet is secured to the floor. If not, the cabinet can topple over when the heavy drive module is slid forward in front of the cabinet. This can cause injury or death, and damage to the equipment.

Stop the drive and do the steps in section Electrical safety precautions before you start the work.

For drives with options +L505 and +L506: Remove the shroud.

For drives with options +L505 and +L506: Remove the Pt100 and thermistor relay mounting plate by loosening the two mounting screws and lifting the mounting plate up.

Remove the drive module main fan.

Undo the screws on the right-hand side of the swing-out frame.

Undo the hinge screw at the top and bottom of the swing-out frame to enable the frame to open aside far enough.

Unplug the control wire terminals at the right-hand side of the cabinet.

Run this procedure

1 Yearly Door Filter IP54 Replacement

Check the dustiness of the air inlet meshes

If the dust cannot be removed by vacuum cleaning from outside through the grating holes with a small nozzle, proceed as follows:

Stop the drive and do the steps in section Electrical safety precautions before you start the work

Remove the fasteners at the top of the grating

Lift the grating and pull it away from the door

Remove the air filter mat

Place the new filter mat in the grating the metal wire side facing the door

Reinstall the grating in reverse order

Sign off on the filter replacement

Run this procedure

1 Yearly Drive Maintenance

Performance quality of supply voltage

Inspect spare parts

Performance DC circuit capacitors reforming

Inspect IP22 and IP42 air inlet and outlet meshes

Inspect tightness of terminals

Inspect dustiness, corrosion and temperature

ABB-SACE Air circuit breaker maintenance

Sign off on the yearly drive maintenance

Run this procedure

9 Yearly Drive Module Main Fan Replacement

Drive stopped and electrical safety precautions followed

Drive module slid forward

Mounting screws of the fan mounting plate undone

Fan mounting plate pulled down from the side edge

Power supply wires unplugged

Fan mounting plate lifted off

Fan removed from the mounting plate

New fan installed in reverse order

Run this procedure

6 Yearly ZCU-14 Control Unit Battery Replacement

Warning: For trained personnel only. Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.

Drive stopped and electrical safety precautions followed

M4×8 (T20) screws at the ends of the control unit removed

XD2D terminal block removed to see the battery

Edge of the control unit cover on the side with the I/O terminal blocks carefully lifted

Battery pulled out of the battery holder

New CR2032 battery put into the battery holder

Control unit cover closed

M4×8 (T20) screws tightened

Run this procedure
