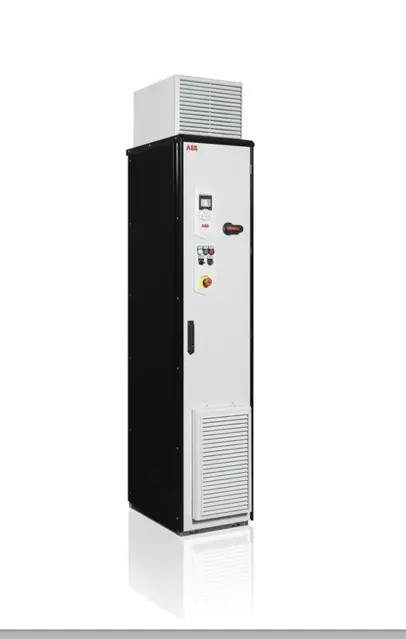

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0156A-5 ACS880-07-0156A-5
Need answers fast?
Explore the manual using AI.
The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0156A-5 is designed for efficient motor control and energy savings in industrial applications. This advanced drive offers robust performance, reliability, and flexibility, making it ideal for various automation needs. Optimize your operations with ABB's cutting-edge technology.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0156A-5 ACS880-07-0156A-5
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0156A-5 ACS880-07-0156A-5
Create an account to install this asset package.
Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0156A-5 Model ACS880-07-0156A-5
Integrate maintenance plans directly into your work orders in MaintainX.
20 Yearly Safety component Replacement
Warning: This procedure requires trained personnel with PPE!
Check if the mission time of functional safety components is expired
If the mission time is expired, proceed with the following steps
Choose the type of renewal
Note: Renewal of the components in the safety function circuit is economical only with larger drives that have replaceable circuit boards and other components such as relays.
Check if some of the components have already been renewed earlier
If some components have been renewed earlier, their mission time restarts. However, the remaining mission time of the whole circuit is determined by its oldest component.
Sign off on the safety component replacement
6 Yearly ZCU-14 Control Unit Battery Replacement
Warning: For trained personnel only. Follow safety instructions of the drive.
Drive stopped and electrical safety precautions followed
M4×8 (T20) screws at the ends of the control unit removed
XD2D terminal block removed to see the battery
Edge of the control unit cover on the side with the I/O terminal blocks carefully lifted
Battery pulled out of the battery holder
New CR2032 battery inserted into the battery holder
Control unit cover closed
M4×8 (T20) screws tightened
9 Yearly Cabinet Fan Replacement
Warning: Follow the steps in section Electrical safety precautions before you start the work.
Drive stopped?
Fan mounting plate removed?
Fan removed from the mounting plate?
New fan installed in reverse order?
Sign off on the fan replacement
6 Yearly IP54 (UL type 12) Roof Fan 60 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Front grating lifted upwards and removed
Fastening screws of the front plate loosened and plate removed
Fan supply wires disconnected
Mounting screws of the fan loosened
Fan pulled out
New fan installed in reverse order
Sign off on the fan replacement
Cleaning the Interior of the Cabinet
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.
Drive stopped and electrical safety precautions followed
Cabinet door opened
Interior of the cabinet cleaned using a vacuum cleaner and a soft brush
Air inlets of the fans and air outlets of the modules (top) cleaned
Air inlet gratings (if any) on the door cleaned
Door closed
Sign off on the cleaning procedure
Parts for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0156A-5 ACS880-07-0156A-5
Access the parts list for your equipment in MaintainX.
Fuse IEC
170M3816D
Sine Filter
B84143V0162R229
Fuse UL
DFJ-300
Fuse IEC
170M3816D
Sine Filter
B84143V0162R229
Fuse UL
DFJ-300
Fuse IEC
170M3816D
Sine Filter
B84143V0162R229
Fuse UL
DFJ-300
