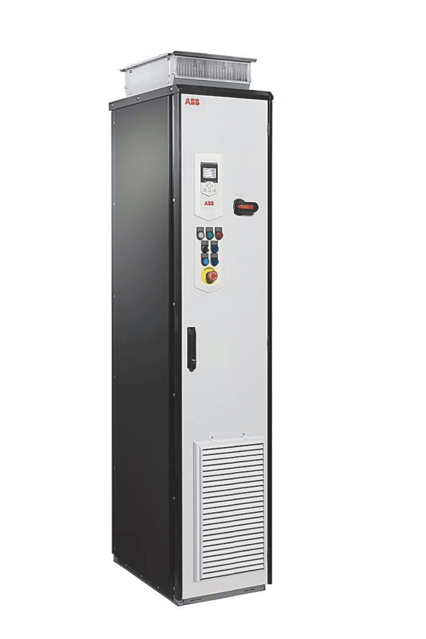

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0145A-3 ACS880-07-0145A-3
Need answers fast?
Explore the manual using AI.
The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0145A-3 is designed for efficient motor control in industrial applications. This versatile drive enhances energy savings and operational performance, making it ideal for various automation needs. With robust features and reliable performance, the ACS880 series is a top choice for modern industrial environments.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0145A-3 ACS880-07-0145A-3
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0145A-3 ACS880-07-0145A-3
Create an account to install this asset package.
Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0145A-3 Model ACS880-07-0145A-3
Integrate maintenance plans directly into your work orders in MaintainX.
9 Yearly IP54 (UL type 12) Roof Fan 50 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions done?
Front grating lifted upwards and removed?
Fastening screws of the front plate loosened and plate removed?
Fan supply wires disconnected?
Mounting screws of the fan loosened?
Fan pulled out?
New fan installed in reverse order?
Sign off on the fan replacement
6 Yearly IP54 (UL type 12) Roof Fan 60 Hz Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Front grating lifted upwards and removed
Fastening screws of the front plate loosened and plate removed
Fan supply wires disconnected
Mounting screws of the fan loosened
Fan pulled out
New fan installed in reverse order
Sign off on the fan replacement
ZCU-14 Memory Unit Replacement
Warning: Do not remove or insert the memory unit when the control unit is powered.
Warning: Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed?
Clip of the memory unit pulled forward?
Memory unit taken off?
Memory unit replaced in reverse order?
Sign off on the memory unit replacement
Cleaning the Exterior of the Drive
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Select cleaning tools used
Select the type of detergent used
Prevented water from entering the drive
Sign off on the cleaning procedure
6 Yearly ZCU-14 Control Unit Battery Replacement
Warning: For trained personnel only. Follow safety instructions of the drive.
Drive stopped and electrical safety precautions followed
M4×8 (T20) screws at the ends of the control unit removed
XD2D terminal block removed to see the battery
Edge of the control unit cover on the side with the I/O terminal blocks carefully lifted
Battery pulled out of the battery holder
New CR2032 battery inserted into the battery holder
Control unit cover closed
M4×8 (T20) screws tightened
Parts for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0145A-3 ACS880-07-0145A-3
Access the parts list for your equipment in MaintainX.
Sine Filter
B84143V0162S229
Fuse IEC
170M3816D
Sine Filter
B84143V0162S229
Fuse IEC
170M3816D
Sine Filter
B84143V0162S229
Fuse IEC
170M3816D
