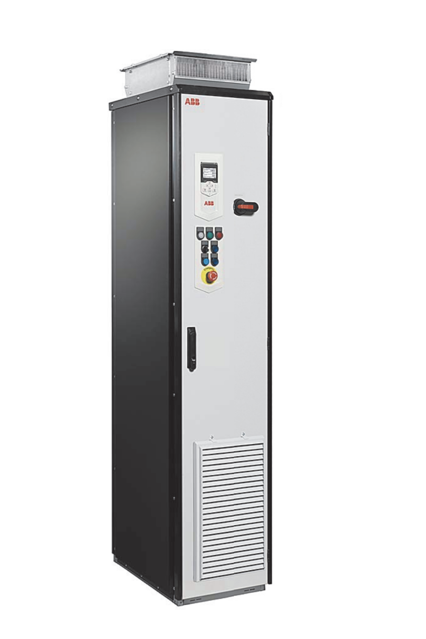

ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0105A-3 ACS880-07-0105A-3
Need answers fast?
Explore the manual using AI.
The ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0105A-3 is designed for efficient motor control and energy savings in industrial applications. This advanced drive offers robust performance and flexibility, making it ideal for various automation needs. Optimize your operations with ABB's reliable technology.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0105A-3 ACS880-07-0105A-3
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0105A-3 ACS880-07-0105A-3
Create an account to install this asset package.
Maintenance Plans for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0105A-3 Model ACS880-07-0105A-3
Integrate maintenance plans directly into your work orders in MaintainX.
ZCU-12 Memory Unit Replacement
Warning: Do not remove or insert the memory unit when the control unit is powered.
Drive stopped and electrical safety precautions followed
Upload a photo of the memory unit before removal
Clip at the side of the memory pulled up
Memory unit removed
Upload a photo of the memory unit after removal
Memory unit installed in reverse order
Upload a photo of the memory unit after installation
Sign off on the memory unit replacement
9 Yearly Cabinet Fan Replacement
Warning: Follow the steps in section Electrical safety precautions before you start the work.
Drive stopped?
Fan mounting plate removed?
Fan removed from the mounting plate?
New fan installed in reverse order?
Sign off on the fan replacement
9 Yearly Auxiliary Cooling Main Fan Replacement
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Power supply wires unplugged from the control unit terminal X208:FAN2
Fan lifted up
New fan installed with arrow pointing up
Counter reset in group 5 in the primary control program
Sign off on the fan replacement
Cleaning the Exterior of the Drive
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Select cleaning tools used
Select the type of detergent used
Prevented water from entering the drive
Sign off on the cleaning procedure
6 Yearly ZCU-12 Control Unit Battery Replacement
Warning: For trained personnel only
Drive stopped and electrical safety precautions taken
Upload a photo of the battery ejector in the battery slot
Battery carefully pulled out of the battery holder
Upload a photo of the new CR2032 battery
New CR2032 battery carefully put into the battery holder
Sign off on the battery replacement
Parts for ABB ABB Enclosed Variable Speed/Frequency Drive ACS880-07-0105A-3 ACS880-07-0105A-3
Access the parts list for your equipment in MaintainX.
Sine Filter
B84143V0130S230
Fuse IEC
170M3814D
Sine Filter
B84143V0130S230
Fuse IEC
170M3814D
Sine Filter
B84143V0130S230
Fuse IEC
170M3814D
