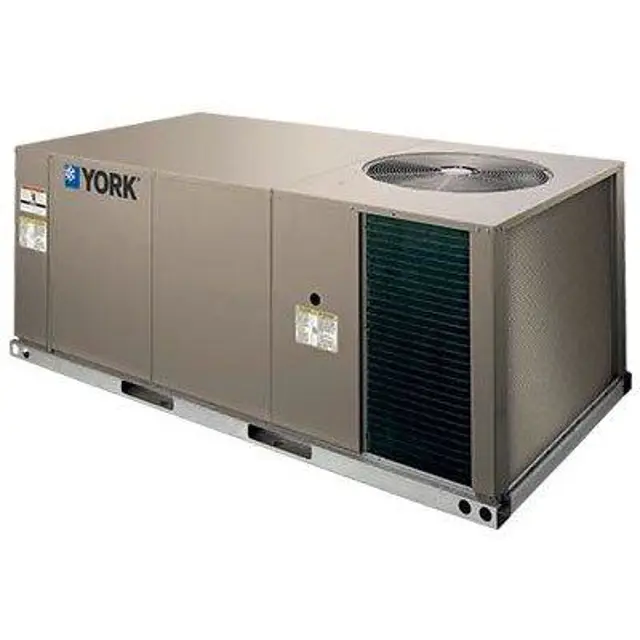

York Heat Pump XN060C00A4A1AE1A1

After installation has been completed.

1. Check the electrical supply voltage being supplied.

Be sure that it is the same as listed on the unit nameplate.

2. Set the room thermostat to the off position.

3. Turn unit electrical power on.

4. Set the room thermostat fan switch to on.

5. Check indoor blower rotation.

• If blower rotation is in the wrong direction, refer to Phasing Section in general information section.

CAUTION: Prior to any of the following maintenance procedures, shut off all electric power to the unit to prevent personal injury.

Outdoor fan motors are permanently lubricated and require no maintenance.

The indoor blower motor features ball bearings that do not require periodic lubrication.

Sign off on the motor lubrication maintenance

WARNING: Perform all maintenance operations on the blower motor with electric power disconnected from the unit.

Check the motor for accumulations of dust, etc. that may block the cooling slots in the motor shell.

Check for loose, damaged or misaligned drive components.

Check that all mounting bolts are tight.

Replace defective parts as required.

CAUTION: Prior to any of the following maintenance procedures, shut off all electric power to the unit to prevent personal injury.

Warning: Prior to any of the following maintenance procedures, shut off all electric power to the unit to prevent personal injury.

Is the electric power to the unit shut off?

Dirt should not be allowed to accumulate on the outdoor coil surface or other parts in the air circuit.

Is the outdoor coil surface and other parts in the air circuit clean?

Cleaning should be as often as necessary to keep coil clean.

Choose the cleaning method used

If water is used to clean coil, be sure electric power to the unit is shut off prior to cleaning.

Was water used to clean the coil?

Exercise care when cleaning the coil so that the coil fins are not damaged.

CAUTION: Prior to any of the following maintenance procedures, shut off all electric power to the unit to prevent personal injury.

Did you shut off all electric power to the unit?

Replace disposable or clean permanent type as necessary.

Did you replace the disposable or clean the permanent type as necessary?

DO NOT replace permanent type with disposable.

Did you ensure not to replace the permanent type with disposable?

The dimensional size of the replacement filter must be the same as the replaced filter.
