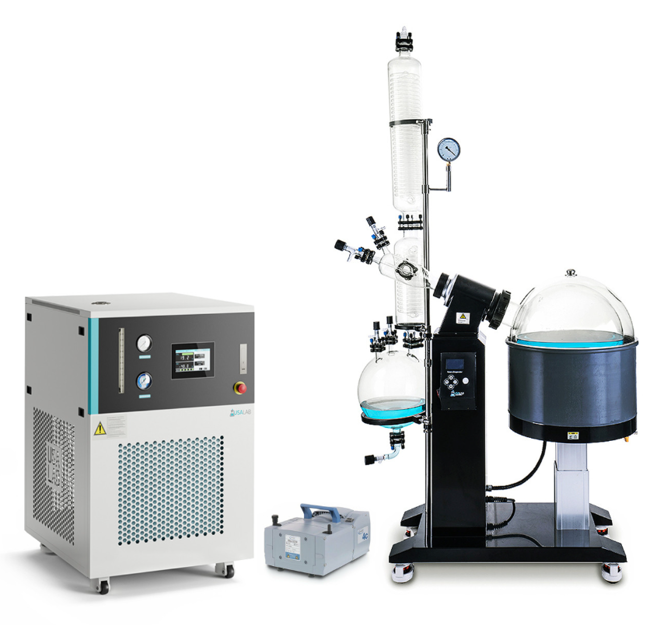

USA Lab Rotary Evaporator R-1020

Need answers fast?
Explore the manual using AI.

USA Lab Rotary Evaporator R-1020
USA Lab Rotary Evaporator R-1020

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for USA Lab Rotary Evaporator R-1020

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

USA Lab Rotary Evaporator R-1020

USA Lab Rotary Evaporator R-1020

Create an account to install this asset package.

Maintenance Plans for USA Lab Rotary Evaporator Model R-1020

Integrate maintenance plans directly into your work orders in MaintainX.

Feed Tube Assembly

Check mark

Preparation

Check mark

Ensure RE-1005 does not include a vent flange

Check mark

Verify the presence of a different style bump trap

Check mark

Feed Tube Installation

Check mark

Install PTFE feed tube on the feed tube before assembly

Check mark

Feed the tube assembly through the seal washer to be placed between both flanges

Check mark

Seal Washer and Feed Tube Assembly

Check mark

Grease the seal washer and slide it down the glass tube of the feed tube

Check mark

Push the PTFE feed tube onto the end of the feed tube (heat if necessary)

Run this procedureArrow right

Bump Trap Assembly

Check mark

Condenser Screw and Retainer Assembly

Check mark

Ensure the following parts are available

Check mark

Place metal condenser screw over the narrow end of the bump trap

Check mark

Find the split in the condenser screw retainer

Check mark

Slide one end of the retainer between the bump trap flange and the condenser screw

Check mark

Push the remainder of the condenser screw retainer down into the condenser screw

Check mark

Is the condenser screw attached to the bump trap?

Check mark

Seal Washer and Bump Trap Assembly

Check mark

Ensure the following parts are available

Run this procedureArrow right

Vacuum Port Assembly

Check mark

Seal Washer Preparation

Check mark

Grease the seal washer (2)

Check mark

Place the seal washer (2) onto the condenser flange (4)

Check mark

Vacuum Port Adjustment

Check mark

Adjust the vacuum port (1) until the flanges line up evenly

Check mark

Quick Clamp Operation

Check mark

Open and loosen the quick clamp (3)

Check mark

Close the quick clamp (3) around the flanges and seal (2)

Check mark

Tighten the quick clamp (3)

Run this procedureArrow right

Auxiliary Condenser Assembly

Check mark

Ensure all preliminary parts are installed

Check mark

Condenser Placement and Alignment

Check mark

Place the condenser onto the pallet mount installed in section 5.1.

Check mark

Align the side port on the bump trap with the matching flange on the condenser.

Check mark

Place the greased seal washer between the two flanges.

Check mark

Adjust the condenser until the flanges line up evenly.

Check mark

Clamp Installation

Check mark

Open and loosen the quick clamp.

Check mark

Close the quick clamp around the flanges and seal.

Run this procedureArrow right

Vertical Stand Assembly

Check mark

Preparation

Check mark

Locate the vertical stand part at the bottom of the crate

Check mark

Unwrap and prepare the top half of the vertical stand (5)

Check mark

Assembly of Vertical Stand

Check mark

Position the male thread onto the female thread

Check mark

Rotate clockwise to secure the two halves together

Check mark

Bar and Strap Attachment

Check mark

Loosen the set screw holding the 'L' shaped bar (3)

Check mark

Attach the grey silicone condenser strap to the short end of the bar

Run this procedureArrow right
