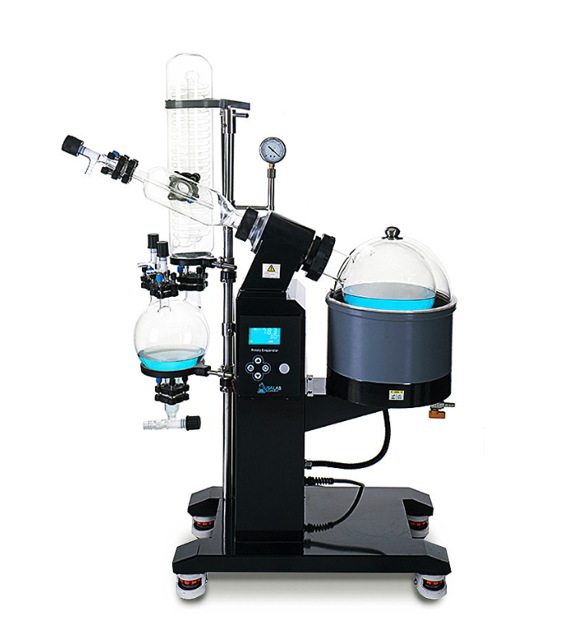

USA Lab Rotary Evaporator R-1005

Need answers fast?
Explore the manual using AI.

USA Lab Rotary Evaporator R-1005
USA Lab Rotary Evaporator R-1005

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for USA Lab Rotary Evaporator R-1005

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

USA Lab Rotary Evaporator R-1005

USA Lab Rotary Evaporator R-1005

Create an account to install this asset package.

Maintenance Plans for USA Lab Rotary Evaporator Model R-1005

Integrate maintenance plans directly into your work orders in MaintainX.

Bump Trap Assembly

Check mark

Condenser Screw and Retainer Assembly

Check mark

Ensure the following parts are ready for assembly

Check mark

Place metal condenser screw (2) over the narrow end of the bump trap (1)

Check mark

Find the split in the condenser screw retainer (3)

Check mark

Slide one end of the retainer between the bump trap flange and the condenser screw (2)

Check mark

Push the remainder of the condenser screw retainer (3) down into the condenser screw (2)

Check mark

Is the condenser screw (2) attached to the bump trap (1)?

Check mark

Seal Washer and Bump Trap Assembly

Check mark

Grease the seal washer (4) on both sides

Run this procedureArrow right

Vertical Stand Assembly

Check mark

Preparation

Check mark

Locate the vertical stand at the bottom of the crate

Check mark

Unwrap and prepare the top half of the vertical stand (5)

Check mark

Assembly of Vertical Stand

Check mark

Position the male thread onto the female thread

Check mark

Rotate clockwise to secure the two halves together

Check mark

Bar and Strap Attachment

Check mark

Loosen the set screw holding the 'L' shaped bar (3)

Check mark

Attach the grey silicone condenser strap to the short end of the bar

Run this procedureArrow right

Boiling Flask Assembly

Check mark

Preparation

Check mark

Refer to section 8 for instructions on greasing the oil seal set

Check mark

Ensure the thick gasket is set correctly to prevent vacuum loss

Check mark

Oil Seal Set Installation

Check mark

Remove boiling screw and retainer before inserting oil seal set

Check mark

Place the greased thick oil seal gasket into the motor coupler with the smooth face pointing to the outside

Check mark

Ensure the gasket slides around the greased end of the vapor duct as displayed in section 8

Check mark

Press the greased thin oil seal gasket in the same manner placing the concave side toward the thick gasket

Check mark

Boiling Flask Assembly

Run this procedureArrow right

Auxiliary Condenser Assembly

Check mark

Ensure all preliminary parts are installed

Check mark

Condenser Placement and Alignment

Check mark

Place the condenser onto the pallet mount installed in section 5.1.

Check mark

Align the side port on the bump trap with the matching flange on the condenser.

Check mark

Place the greased seal washer between the two flanges.

Check mark

Adjust the condenser until the flanges line up evenly.

Check mark

Clamp Installation

Check mark

Open and loosen the quick clamp.

Check mark

Close the quick clamp around the flanges and seal.

Run this procedureArrow right

Feed Tube Assembly

Check mark

Preparation

Check mark

Ensure RE-1005 does not include a vent flange

Check mark

Verify the presence of a different style bump trap

Check mark

Feed Tube Installation

Check mark

Install PTFE feed tube on the feed tube before assembly

Check mark

Feed tube assembly must be fed through the seal washer to be placed between both flanges

Check mark

Assembly Process

Check mark

Grease the seal washer and slide it down the glass tube of the feed tube

Check mark

Push the PTFE feed tube onto the end of the feed tube (heat if necessary)

Run this procedureArrow right
