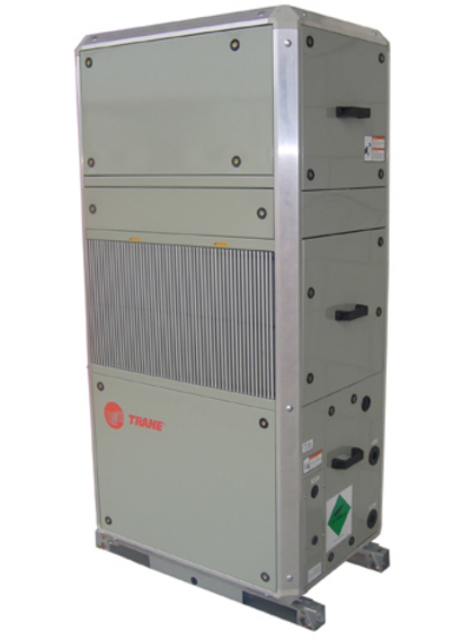

Trane Stealth™ Air-Cooled Chiller SCWH0754

Uncrate the plenum and accessory bag.

Rotate the evaporator blower to the vertical discharge configuration.

Apply the soft gasket provided around the aluminum frame on top of the unit as shown in Figure I-IP-1.

Using a screwdriver, tighten the self-drilling screws as shown in Figure I-IP-1. Be sure to tighten all screws on the rear, right, and left sides through the pilot holes on the plenum panels.

When installation is complete, adjust the motor pulley and the discharge grille for proper airflow.

Sign off on the plenum installation

Perform all monthly maintenance inspections

Perform seasonal startup checks

Inspect contacts of fan motor contactors and relays

Clean and repaint any corroded surface

Sign off on the yearly maintenance check

Verify the fan motor is properly aligned and bolted tight to the motor frame.

With power disconnected, manually rotate the fan wheel to check for obstructions in the housing or interference with fan blades. Remove obstructions and debris. Center the fan wheel if necessary.

Check the fan assembly sheave alignment. Tighten set screws to their proper torques.

Note: Perform this procedure monthly if the unit is in a coastal or corrosive environment.

Sign off on the chiller maintenance

Check and tighten all set screws, bolts, locking collars and sheaves

Inspect, clean, and tighten all electrical connections

Visually inspect the entire unit casing for chips or corrosion. Remove rust or corrosion and repaint surfaces

Visually check for leaks in refrigerant piping

Inspect fan, motor, and control contacts. Replace badly worn or eroded contacts

Inspect the thermal expansion valve sensing bulbs for cleanliness, good contact with the suction line, and adequate insulation from ambient air

Sign off on the yearly maintenance

Remove all mid and top fan section panels

Loosen the brackets inside the unit that clamp the mid and fan sections together

Remove the control box cover and disconnect the motor power wires. Feed wires up through the unit and secure out of the way until rotation is complete

Rotate the fan section to desired position

Re-route the motor power wires back to the control box. Ensure all wiring is free and not routed over any sharp edges

Reconnect the motor power wires per the unit wiring diagram

Bolt and/or clamp all brackets back into place

Replace control box cover and all exterior panels

Verify the fan rotation and motor amp draw
