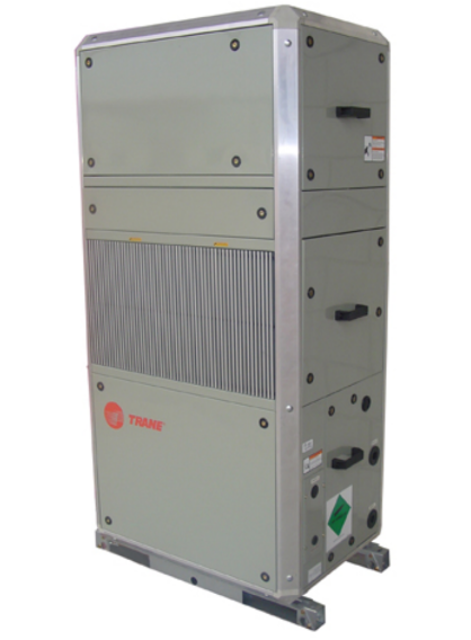

Trane Stealth™ Air-Cooled Chiller SCWH0504

Check and tighten all set screws, bolts, locking collars and sheaves.

Inspect, clean, and tighten all electrical connections.

Visually inspect the entire unit casing for chips or corrosion. Remove rust or corrosion and repaint surfaces.

Visually check for leaks in refrigerant piping.

Inspect fan, motor, and control contacts. Replace badly worn or eroded contacts.

Inspect the thermal expansion valve sensing bulbs for cleanliness, good contact with the suction line, and adequate insulation from ambient air.

Sign off on the yearly maintenance

Perform all monthly maintenance inspections

Perform seasonal startup checks

Inspect contacts of fan motor contactors and relays

Clean and repaint any corroded surface

Sign off on the yearly maintenance check

WARNING: Hazardous Voltage! Disconnect all electrical power including remote disconnects before servicing unit. Follow proper lockout/tagout procedures to ensure power cannot be inadvertently energized. Failure to disconnect power before servicing could result in death or serious injury.

Inspect unit air filters. Clean or replace if airflow is blocked or if filters are dirty.

Inspect coils for icing. Icing on the coils may indicate low airflow supply, restricted airflow from dirty fins.

Check the fan belt condition and tension. Adjust tension if belt is floppy or squeals continually.

Check and record operating pressures.

Sign off on the monthly maintenance

Verify the fan motor is properly aligned and bolted tight to the motor frame.

With power disconnected, manually rotate the fan wheel to check for obstructions in the housing or interference with fan blades. Remove obstructions and debris. Center the fan wheel if necessary.

Check the fan assembly sheave alignment. Tighten set screws to their proper torques.

Note: Perform this procedure monthly if the unit is in a coastal or corrosive environment.

Sign off on the chiller maintenance

WARNING: Hazardous Chemicals! Coil cleaning agents can be either acidic or highly alkaline. Handle chemical carefully. Proper handling should include goggles or face shield, chemical resistant gloves, boots, apron, or protective suit as required. For personal safety, refer to the cleaning agent manufacturer’s materials safety data sheet and follow all recommended safe handling practices. Failure to follow all safety instructions could result in death or serious injury.

Remove panels from the unit to gain access to the coil.

Use a soft brush to remove loose dirt and debris form both sides of the coil.

Straighten coil fins with fin comb as required.

Mix the detergent with water according to the manufacturers instructions. Observe all recommendations of the cleanser manufacturer. The coil cleanser manufacturer’s recommendations, warnings and cautions will at all times take precedence to these instructions.

Place solution in the sprayer. Be sure to follow these guidelines if using a high-pressure sprayer: a) Keep minimum nozzle spray angle 15°. b) Spray solution at a 90° angle to the coil face. c) Keep sprayer nozzle at least six inches from the coil. d) Sprayer pressure must not exceed 600 psi.

Spray leaving air side of the coil first then spray the entering air side of the coil. Allow the detergent and water solution to stand on the coil for five minutes.

Rinse both sides of the coil with cool, clean water.
