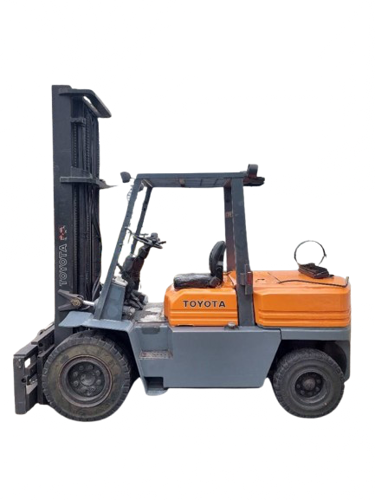

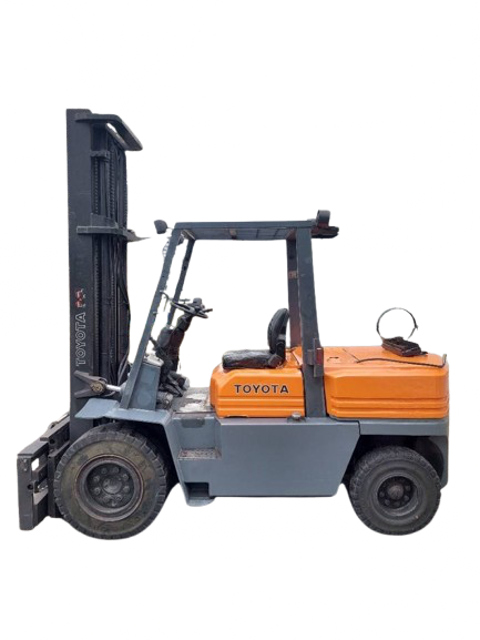

Toyota Forklift 02-5FD45

Need answers fast?
Explore the manual using AI.

Toyota Forklift 02-5FD45
Toyota Forklift 02-5FD45

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Toyota Forklift 02-5FD45

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Toyota Forklift 02-5FD45

Toyota Forklift 02-5FD45

Create an account to install this asset package.

Maintenance Plans for Toyota Forklift Model 02-5FD45

Integrate maintenance plans directly into your work orders in MaintainX.

170 Hour / 1 Month Maintenance

Check mark

Inspect head guard for cracks at welded portions

Check mark

Inspect head guard for deformation and damage

Check mark

Retighten for loosening of mounting in the back-rest

Check mark

Inspect back-rest for deformation, cracks, and damage

Check mark

Inspect the function and mounting condition of the lighting system

Check mark

Inspect the function and mounting condition of the horn

Check mark

Inspect the function and mounting condition of the direction indicator

Check mark

Inspect the functions of the instruments

Check mark

Inspect the function and mounting condition of the backup buzzer

Run this procedureArrow right

170 Hour / 1 Month Engine Maintenance

Check mark

Inspect proper starting and abnormal noise

Check mark

Measure rotating condition at idling

Check mark

Measure rotating condition during acceleration

Check mark

Inspect exhaust gas condition

Check mark

Clean air cleaner element

Check mark

Inspect PCV system for clogging and damage in PCV valve and piping

Check mark

Measure no-load maximum RPM of governor

Check mark

Inspect lubrication system for oil leaks

Check mark

Inspect lubrication system oil level

Run this procedureArrow right

170 Hour / 1 Month Hydraulic System Maintenance

Check mark

Retighten loosening and damage of cylinder mounting

Check mark

Inspect deformation and damage of rod, rod screw and rod end

Check mark

Inspect cylinder operation

Check mark

Measure natural drop and natural forward tilt

Check mark

Inspect for oil leaks and damage in the cylinder

Check mark

Inspect for wear and damage of the pin and cylinder bearing

Check mark

Measure lifting speed

Check mark

Inspect cylinder for uneven movement

Check mark

Inspect for oil leaks and abnormal sound from the oil pump

Run this procedureArrow right

2000 Hour / 12 Month Braking System Maintenance

Check mark

Inspect function, wear, damage, leak and mounting looseness in Master cylinder and wheel cylinder

Check mark

Inspect Wear of shoe sliding portion and lining

Check mark

Inspect Drum wear and damage

Check mark

Inspect Shoe operating condition

Check mark

Inspect Anchor pin rusting

Check mark

Measure Return spring fatigue

Check mark

Inspect Automatic adjuster function

Check mark

Inspect Backing plate for deformation, cracks and damage

Check mark

Retighten Backing plate loose mounting

Run this procedureArrow right

2000 Hour / 12 Month Replacement

Check mark

Spark plug replaced

Check mark

Wheel bearing grease replaced

Check mark

Air cleaner element replaced

Check mark

Cups and seals for brake master and wheel cylinders replaced

Check mark

Brake booster rubber parts replaced

Check mark

Sign off on the replacement procedure

Run this procedureArrow right
