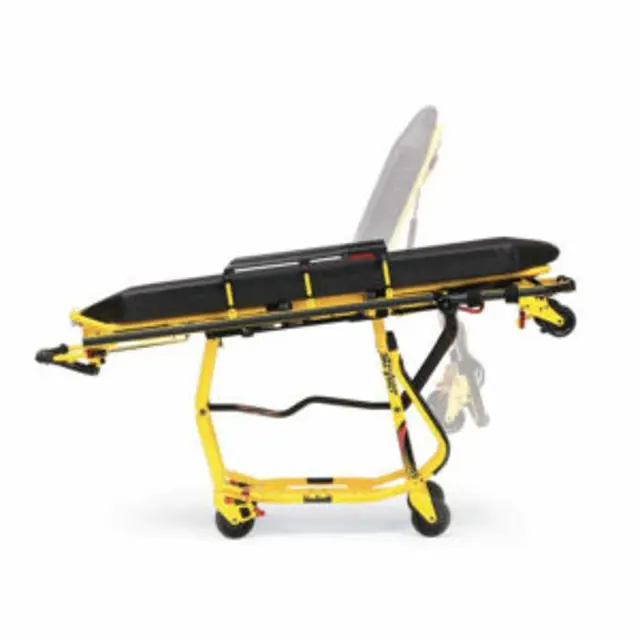

Stryker Stretcher 6092 EZ-Pro

All the restraint straps are securely buckled around the patient

Operator positioned at the foot end and one at the head end or the side at all times

Approach door sills or other low obstacles squarely and lift each set of wheels over the obstacle separately

Sign off on the cot maintenance

Auxiliary lock release link (B) pulled and held

Auxiliary lock lever (C) bottomed in the slot of the lever guard (D)

Hole in the rod end (E) aligned with the weld nut in the auxiliary lock slide link (F)

Sign off on the auxiliary lock handle adjustment

Place the cot in the cot fastener

Remove the cot from the fastener and unload it from the vehicle

Center the safety hook on the cot safety bar

Mark the position of the safety hook on the patient compartment floor

Drill the holes for the socket head cap screws

Attach the safety hook to the patient compartment floor

Verify the safety hook always engages the cot safety bar when the cot is unloaded from the vehicle

Sign off on the safety hook replacement

Remove any restraints already attached to the cot

Raise the cot backrest to the full upright position

Position the Pedi-Mate pad flat on the backrest with the black backrest straps out

Wrap the straps around the backrest and insert the ends of the straps through the brackets. Securely fasten the buckle

Pull firmly on the end of the adjustable backrest strap and tighten it securely

Thread the mainframe straps down between the cot frame and the mattress. To be sure the release button is toward the foot end of the cot, insert the buckle behind the crossbrace and bring the it up in front of the crossbrace. Secure the buckle around the litter crossbrace leaving a little slack in the strap for final adjustment

Verify all the straps are snug and fastened securely

Sign off on the Pedi-Mate to the Cot Maintenance

Remove the bolt (G) and disconnect the link (B)

Lift the cot at both ends to take the weight off the base frame. Pull the foot end release handle and verify the patient left latch bar (C) is touching the foot end lever support bracket (E) at contact point 1

If the handle requires adjustment, remove the bolt (F), turn the rod end (H), and replace the bolt (F) until the conditions described in step 1 are achieved. Verify there is approximately 1/8” of clearance between the release handle and the grip on the lift bar

Replace bolt (G) to reconnect link (B)

Lift the cot at both ends to take the weight off the base frame. Pull the foot end release handle and verify the patient right latch bar (D) is touching the foot end lever support bracket (E) , at contact point 2. Verify the patient left latch bar (C) is touching the foot end lever support bracket (E) at contact point 1. Verify there is approximately 1/8” of clearance between the release handle and the grip on the lift bar

If the handle requires adjustment, remove the bolt (G),turn the rod end (H), and replace the bolt (G) until the conditions described in step 5 are achieved.

Sign off on the handle adjustment
