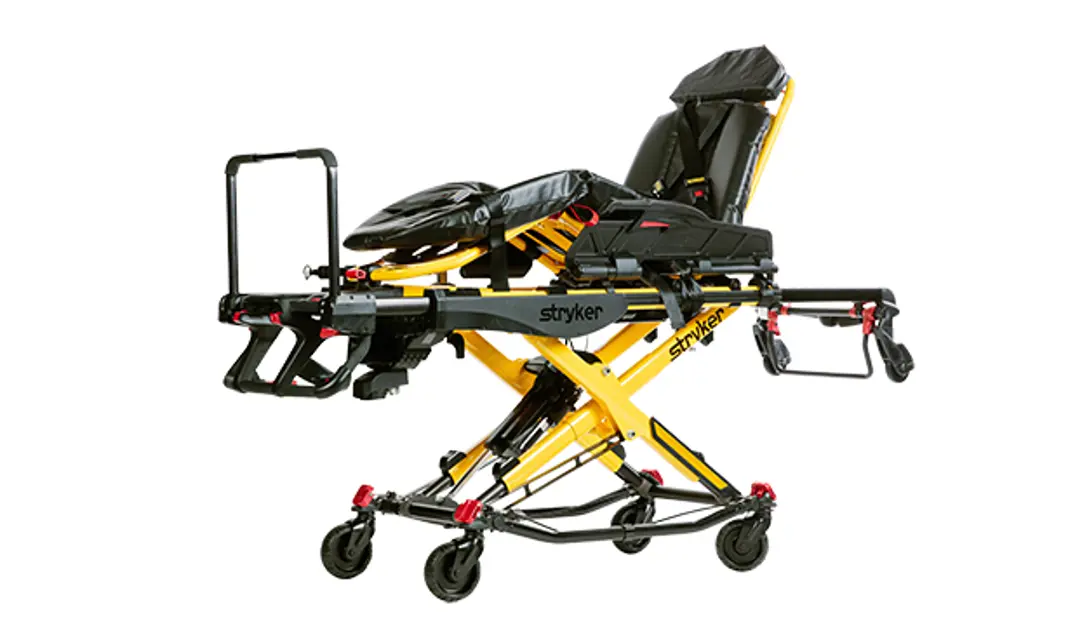

Stryker Stretcher 6091 EX-PRO 2 ambulance Cot

All fasteners secure (reference all assembly prints)

All welds intact, not cracked or broken

No bent or broken tubing or sheet metal

All wheels secure, rolling and swivelling properly

Optional wheel lock holds wheel securely when on and clears wheel when off

Siderails move and latch properly

Optional accessories intact and operating properly

Hex nut on the Backrest pivot loosened

Set screw adjusted to remove play between Backrest release handle and pneumatic cylinder release button

Backrest travels from flat to at least 75 degrees

Backrest lowered to a 5–10 degree angle and handle released

50 pounds downward force applied to the end of the Backrest and checked for drift

Hex nut tightened while holding the set screw fixed in the pivot

Sign off on the pneumatic backrest adjustment

Pole lifted and pivoted from the storage position and pushed down until it is locked into receptacle (A)

Lock actuator (B) turned counterclockwise and telescoping portion (C) of the pole pulled up to raise it to the desired height

Lock actuator (B) turned clockwise to lock the telescoping portion in place

I.V. bags hanged on the I.V. hook (D)

Sign off on the I.V. Pole Maintenance

Pole lifted and pivoted from the storage position and pushed down until it is locked into receptacle (A)

Height of the pole raised by turning the lock actuator (B) counterclockwise and pulling up on the bottom telescoping portion (C) of the pole

Lock actuator (B) turned clockwise to lock the bottom telescoping portion in place

For a higher I.V. pole, section (D) pulled up until the spring clip (E) engages

I.V. bags hanged on the I.V. hook (F)

To lower the I.V. pole, spring clip (E) pushed in and section (D) slid down into section (C). Lock actuator (B) turned counterclockwise and section (C) slid into the bottom tube

Pole lifted up and pivoted down into the storage position

Sign off on the I.V. pole maintenance

Select the frequency of cot inspection

Upload a photo of the cot after inspection
