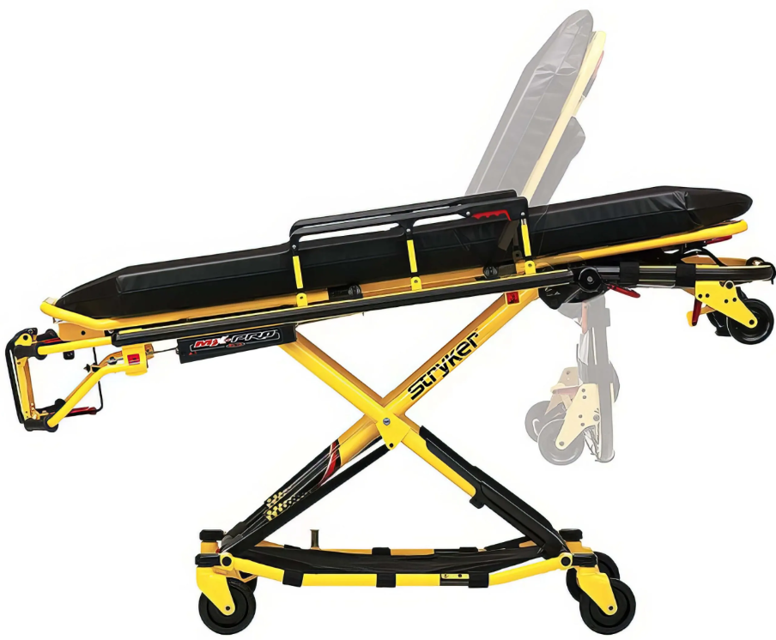

Stryker Stretcher 6080 MX-Pro Ambulance Cot

All fasteners secure (reference all assembly prints)

All welds intact, not cracked or broken

No bent or broken tubing or sheet metal

All wheels secure, rolling and swivelling properly

Optional wheel lock holds wheel securely when on and clears wheel when off

Siderails move and latch properly

Optional accessories intact and operating properly

Lift and pivot the pole from the storage position and push down until it is locked into receptacle (A)

Turn the lock actuator (B) counterclockwise and pull up on the bottom telescoping portion (C) of the pole to raise it to the desired height

Turn the lock actuator (B) clockwise to lock the bottom telescoping portion in place

For a higher I.V. pole, pull up on section (D) until the spring clip (E) engages

Hang I.V. bags on the I.V. hook (F)

To lower the I.V. pole, push in on the spring clip (E) and slide section (D) down into section (C). Turn the lock actuator (B) counterclockwise and slide section (C) into the bottom tube

Lift up and pivot the pole down into the storage position

Sign off on the I.V. pole maintenance

Lift and pivot the pole from the storage position and push down until it is locked into receptacle (A)

Turn the lock actuator (B) counterclockwise and pull up on the telescoping portion (C) of the pole to raise it to the desired height

Turn the lock actuator (B) clockwise to lock the telescoping portion in place

Hang I.V. bags on the I.V. hook (D)

Sign off on the I.V. Pole Maintenance

Move Backrest to 75 degrees for easier access

Loosen the hex nut (item F) on the Backrest pivot (item J) while holding the set screw (item H) fixed in the pivot using a 1/2” wrench

Turn the set screw (item H) until there is no play between the Backrest release handle (item K) and the pneumatic cylinder release button using a 5/32” Allen wrench

Ensure the Backrest will travel from flat to at least 75 degrees. If it doesn’t, turn the set screw (item H) clockwise 1/2 turn. Repeat until at least 75 degrees of travel is achieved

Lower the Backrest to a 5–10 degree angle and release the handle. Apply approximately 50 pounds downward force to the end of the Backrest. If the Backrest drifts down, turn the set screw (item H) counterclockwise. Repeat until the Backrest does not drift downward

Tighten the hex nut (item F) while holding the set screw (item H) fixed in the pivot using the 1/2” wrench

Sign off on the pneumatic backrest adjustment
