Stryker Stretcher 5051
Stryker Stretcher 5051

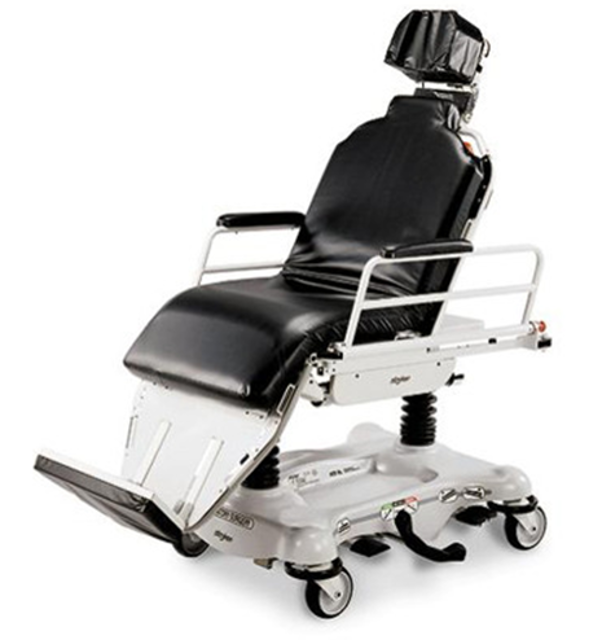

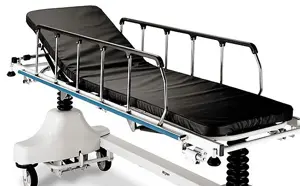

The Stryker Stretcher 5051 is a high-quality, reliable medical transport solution designed for patient safety and comfort. This stretcher features advanced hydraulic systems and durable components, making it ideal for emergency medical services and hospital use.

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Stryker Stretcher 5051

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Stryker Stretcher 5051

Stryker Stretcher 5051

Create an account to install this asset package.

Maintenance Plans for Stryker Stretcher Model 5051

Integrate maintenance plans directly into your work orders in MaintainX.

Articulating Head Piece Adjustment

Check mark

Select the section that is binding

Check mark

If the neck section is binding, the 4 Phillips head screws (A) holding the neck section cover (B) must be removed.

Check mark

Neck section screws removed

Check mark

If the head or neck section is not returning to the full lock position, use a 7/16” socket and ratchet to loosen the pivot nut (C).

Check mark

Pivot nut loosened

Check mark

If the torque block (E) is binding, use a 7/16” socket and ratchet to loosen the pivot nut (D).

Check mark

Pivot nut loosened

Check mark

If the section is still binding, check the torque block (E) for excess pressure against the gear (F). Using a 7/16” socket and ratchet, loosen the two nuts (G) holding the gear adjustment block. Tighten the nuts and verify the handle is releasing properly.

Check mark

Gear adjustment block nuts loosened and tightened

Run this procedureArrow right

Preventative Maintenance

Check mark

All fasteners secure

Check mark

Siderails move and latch properly – securing pins and screws are intact

Check mark

Transfer surface intact and working properly

Check mark

Brake pedal engaged and all casters lock securely

Check mark

All casters secure and swiveling properly

Check mark

Steer function working properly

Check mark

Fowler/leg articulation operating properly

Check mark

Trendelenburg/Reverse Trendelenburg operating properly

Check mark

No leaks at hydraulic connections

Run this procedureArrow right

5051 Pneumatic Fowler Adjustment

Check mark

Apply the stretcher brakes

Check mark

Pump the stretcher litter up to full height

Check mark

Move the Fowler to 70 or higher

Check mark

Loosen the two nuts (A) on the adjustment screw (B) using (2) 3/8” wrenches

Check mark

Adjustment screw direction

Check mark

Tighten the two nuts

Check mark

Repeat for the other side of the Fowler

Check mark

Raise the Fowler to the full up position

Check mark

Pull down on both sides of the Fowler, squeeze both release handles and verify both pneumatic cylinders release equally

Run this procedureArrow right

Independent Leg Section Cylinder Adjustment

Check mark

Set the brakes, raise litter to full height, put stretcher chair in flat position and put unit in slight Trendelenburg (head down) for access to the cylinder.

Check mark

Refer to drawing 5050–37–1 on pages 74–77 for part reference.

Check mark

Be sure the independent leg section handles are pointed toward the head end of the stretcher chair.

Check mark

Using a 3/32” hex Allen wrench, remove the set screw (item AC), located in the center of the yoke (item S).

Check mark

Using a 5/16” hex Allen wrench and a 5/8” box end wrench, remove the pivot bolts (item AT), washer (item F) and nut (Item AB) holding the cylinder to the leg section frame.

Check mark

To adjust the Fowler, turn the gas spring 1 to 2 turns counterclockwise if the leg section will not move when actuated and 1 to 2 turns clockwise if the leg section will not hold its position.

Check mark

Replace the pivot bolt (item AT) and check the leg section actuation. Rotate the handles on the leg section toward the foot end of the stretcher chair and pull outward to move the leg section. When the handle is released, the leg section should hold its position. If the leg section will not move or does not hold its position, repeat step 6.

Check mark

When the leg section is properly adjusted, replace the washer (item F) and the hex nut (item AB) to secure the pivot bolt.

Check mark

Using thread Loctite, reinstall the set screw (item AC).

Run this procedureArrow right

Jack Descent Rate Adjustment

Check mark

Pump the litter up to full height

Check mark

Lift the base hood, separating the Velcro holding it to the base frame

Check mark

Loosen the silver locking ring by turning it counterclockwise

Check mark

Adjust the blue knob

Check mark

Adjust the valve so that the jack at the foot end of the Stretcher Chair will descend slightly faster than the jack at the head end

Check mark

Remove the bungee cords supporting the base hood and secure the hood to the base frame

Run this procedureArrow right

Parts for Stryker Stretcher 5051

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Head Pad. 3" Inflatable

1069-182-10

Foot Rest Pad, 2"

5050-140-5

Head Pad, 1" Flat

1069-78

Foot Rest Pad, 3", Ultra Comfort

5051-43-40

Jack Replacement Pump Piston

715-100-325

Head Pad. 3" Inflatable

1069-182-10

Foot Rest Pad, 2"

5050-140-5

Head Pad, 1" Flat

1069-78

Foot Rest Pad, 3", Ultra Comfort

5051-43-40

Jack Replacement Pump Piston

715-100-325

Head Pad. 3" Inflatable

1069-182-10

Foot Rest Pad, 2"

5050-140-5

Head Pad, 1" Flat

1069-78

Foot Rest Pad, 3", Ultra Comfort

5051-43-40

Jack Replacement Pump Piston

715-100-325
