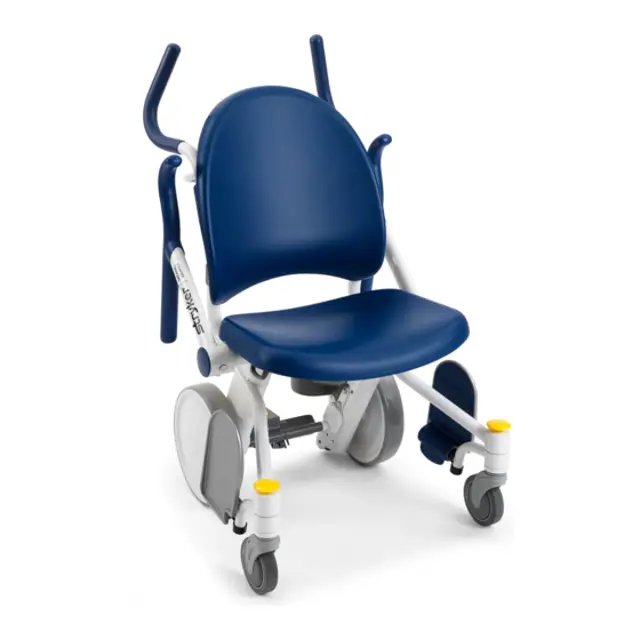

Stryker Stretcher 1460

Remove the brake/go pedal assembly. Save all parts.

Manually open the brake fingers. Manually rotate the rear wheel shaft assembly so the socket head cap screws face the bottom of the chair.

Loosen the two socket head cap screws on the rear wheel shaft assembly using a 9/64” hex wrench.

Remove the retaining ring that secures the rear wheel shaft assembly on the chair frame using snap ring pliers. Save the retaining ring.

Remove the rear wheel shaft assembly.

Remove the screws and brake finger spacer nuts that secure the brake finger assembly using a 5/32” hex wrench and a 3/16” hex wrench. When reinstalling the screws, use a 3/8” drive torque wrench to torque the screws to 70 ± 10 in-lb.

Remove and discard the brake finger assembly.

Reverse steps 2-7 to install the supplied brake finger assembly.

Replace the brake/go pedal assembly.

Push down on the brake pedal to apply the brake.

Upload a photo of the four flat head cap screws (A) and adaptors (B) before removal

Using a 3/16” hex wrench, remove the four flat head cap screws (A) and adaptors (B) to remove the seat back (C) from the chair frame. Save the screws, adaptors, and seat back.

Upload a photo of the seat back (C) after removal

When reinstalling the seat back, use a 3/16” hex wrench to reinstall the four flat head cap screws (A) and adaptors (B) (removed in step 2) to secure the seat back (C) to the chair frame.

Using a 3/8” drive torque wrench, torque the screws to 70 ± 10 in-lb.

Verify proper operation before returning the product to service.

Sign off on the seat back maintenance

Occupant’s feet are clear of the flip-up footrests

Flip-up footrests raise to the stowed position (A)

Path of the swing-away footrests is clear

Press the yellow swing-away footrest release button (D) on the top of the swing-away footrest

Swing-away footrest is in the stowed position (B)

Sign off on the swing-away footrest maintenance

Position the chair near the occupant

Push down on the brake pedal to apply the brake. Push on the product to make sure that the brake is working

Assist the occupant in getting into Prime TC. Make sure that the occupant is seated in an upright position against the seat back

Using your foot, lower the flip-up footrest to the transport position by lifting up on the footrest lever (A) (Figure 6 on page 15)

Position the occupant’s feet fully on the footrests

Put the flip-up armrests down and make sure that the occupant’s arms are fully positioned on the armrests

Push down on the brake pedal to apply the brake. Push on the product to make sure that the brake is working.

Using a 7/16" combination wrench, tighten or loosen the nylock hex nut (J) in quarter turn increments. (Figure 37 on page 53).

Verify proper operation before returning the product to service.
