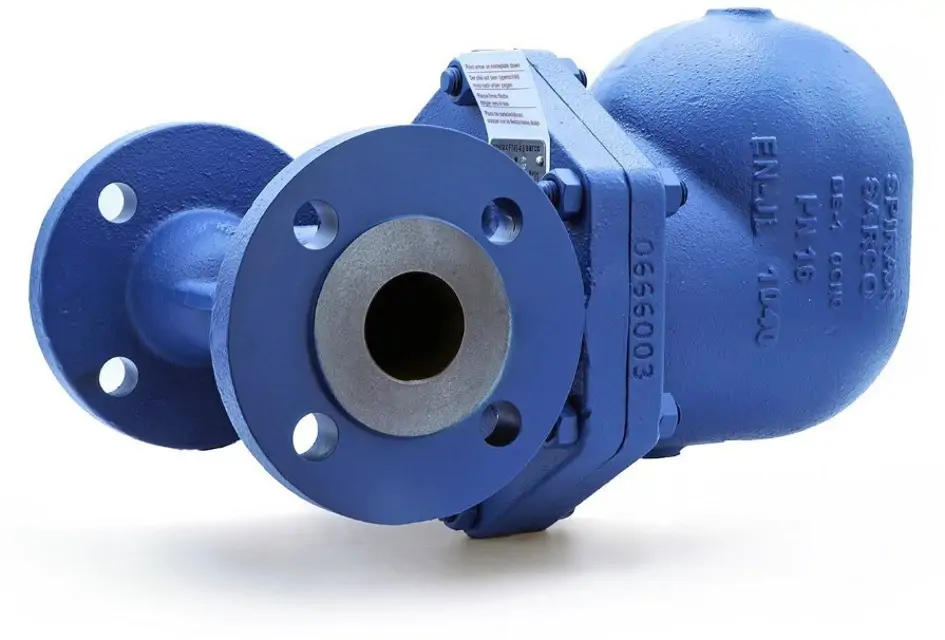

Spirax Sarco Ball Float Steam Trap FT43-14 DN25

Create an account to install this asset package.

Maintenance Plans for Spirax Sarco Ball Float Steam Trap Model FT43-14 DN25

Integrate maintenance plans directly into your work orders in MaintainX.

Bimetallic Air Vent Assembly

Pre-maintenance Safety Check

Observe 'Safety information' in Section 1

Component Removal

Unscrew and remove the element assembly (17) and gasket (18)

Gasket Handling Warning

Handle the cover gasket with care to avoid injury

Component Installation

Ensure the gasket faces are clean and dry

Fit the new gasket (18) and element assembly (17)

Run this procedure

Ball Float Steam Trap Service

Pre-Maintenance Safety Check

Observe 'Safety information' in Section 1

Is the FT43 provided with a bimetallic air vent?

Handling Precautions

Handle the cover gasket carefully to avoid injury from the stainless steel support ring

Repair and Reassembly

Is the trap isolated in the pipeline?

Are all joint faces clean?

Ensure the dowel locates in the cover during reassembly

Run this procedure

Main Valve Assembly

Pre-maintenance Safety Check

Observe the 'Safety information' in Section 1

Disassembly

Unscrew the support frame (9), pivot frame (10) and the valve seat (5)

Cleaning and Preparation

Ensure the seat/gasket faces are clean and dry

Assembly

Fit the new gasket (6) and the valve seat (5) to the body

Attach the support frame (9) and pivot frame (10) to the body with the assembly set screws (7) but do not tighten

Run this procedure

Capsule Air Vent Assembly

Pre-maintenance Safety Check

Observe the 'Safety information' in Section 1

Disassembly

Remove the spring clip, capsule, and spacer plate

Unscrew the seat and remove the frame and gasket

Cleaning and Preparation

Ensure the gasket faces are clean and dry

Assembly

Fit the new gasket, frame, and seat

Run this procedure
