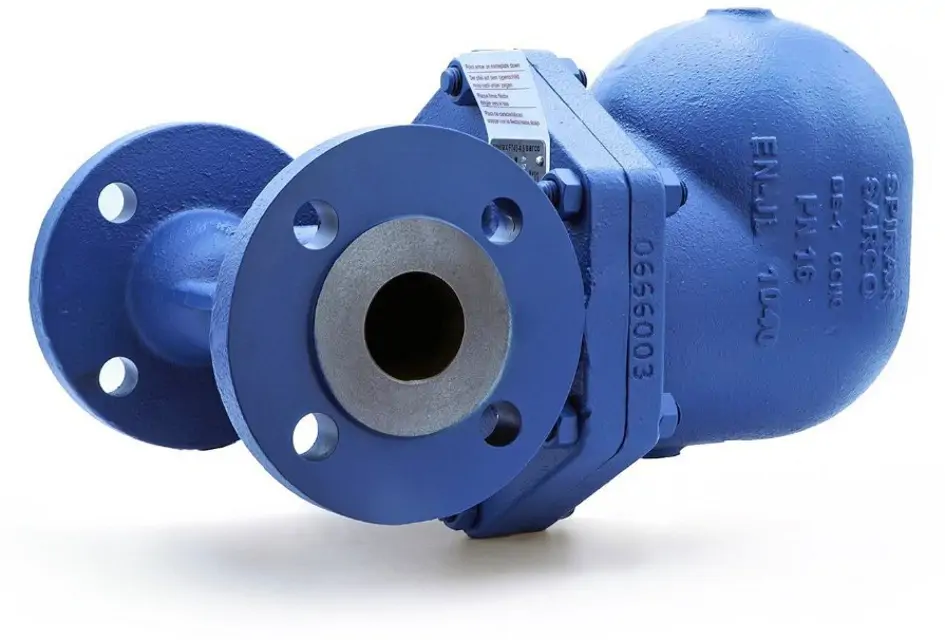

Spirax Sarco Ball Float Steam Trap FT44-10 DN25

Create an account to install this asset package.

Maintenance Plans for Spirax Sarco Ball Float Steam Trap Model FT44-10 DN25

Integrate maintenance plans directly into your work orders in MaintainX.

Capsule Air Vent Assembly

Safety Information

Observe the 'Safety information' in Section 1 before starting maintenance

FT43 Bimetallic Air Vent

Check if FT43 is provided with a bimetallic air vent

Warning: Handle cover gasket carefully

Handle and dispose of the cover gasket carefully to avoid physical injury

Disassembly

Remove the spring clip, capsule, spacer plate, and unscrew the seat

Remove the frame (17) and gasket (18)

Run this procedure

Bimetallic Air Vent Assembly

Pre-maintenance Safety

Observe 'Safety information' in Section 1

Preparation

Is the FT43 provided with a bimetallic air vent?

Warning

Handle and dispose of the cover gasket carefully

Element Assembly Removal

Unscrew and remove the element assembly (17) and gasket (18)

Gasket and Element Assembly Installation

Run this procedure

Ball Float Steam Trap Service

Pre-Maintenance Safety Check

Observe 'Safety information' in Section 1

Initial Inspection

Is the FT43 provided with a bimetallic air vent?

Handling Precautions

Handle cover gasket with care

Repair and Reassembly

Ensure suitable isolation before repairs

Check cleanliness and alignment during reassembly

Run this procedure

Main Valve Assembly

Pre-maintenance Safety Check

Observe the 'Safety information' in Section 1

Disassembly

Unscrew the support frame (9), pivot frame (10) and the valve seat (5)

Cleaning and Preparation

Ensure the seat/gasket faces are clean and dry

Assembly

Fit the new gasket (6) and the valve seat (5) to the body

Attach the support frame (9) and pivot frame (10) to the body with the assembly set screws (7) but do not tighten

Run this procedure
