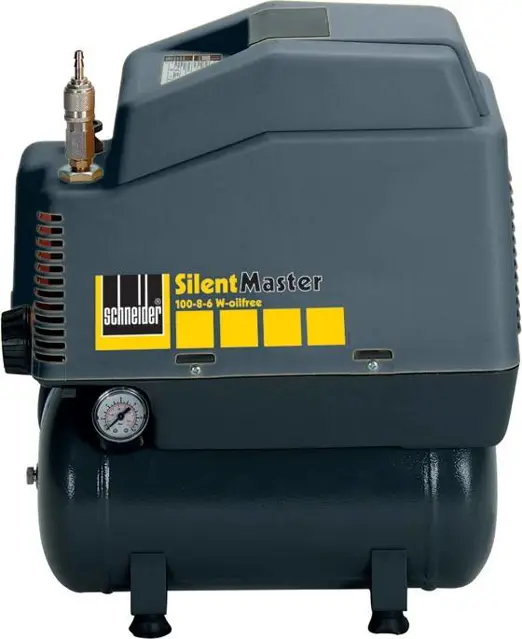

Schneider Electric Compressor SEM 100-8-6 W-oilfree

Special inspections are not required for this compressor.

We recommend that a "qualified person" perform a pressure test on the vessel after 10 years, depending on general levels of wear and tear.

A "qualified person" should be well informed about Ordinance on Industrial Safety and Health (formerly authorised expert)

Contact any of our approved service partners. Most of our service partners have employees with expert qualifications.

1. Remove the filter insert cover.

2. Pull out the filter insert. (Fig. 5a)

3. Clean the filter insert using the blow gun, exchange the filter insert if necessary.

4. Insert the filter insert, push the cover shut.

Do not purge the intake opening. No foreign objects may enter.

Never operate the compressor without an intake filter.

1. Remove the filter insert cover.

2. Pull out the filter insert. (Fig. 5a)

3. Clean the filter insert using the blow gun, exchange the filter insert if necessary.

4. Insert the filter insert, push the cover shut.

Do not purge the intake opening. No foreign objects may enter.

Never operate the compressor without an intake filter.

- Change check valve and insert:

1. Unscrew the locking screw (Figure 6a).

- Check intake filter: Clean if necessary.

1. Remove the filter insert cover.

2. Pull out the filter insert. (Fig. 5a)

3. Clean the filter insert using the blow gun, exchange the filter insert if necessary.

4. Insert the filter insert, push the cover shut.

Do not purge the intake opening. No foreign objects may enter.

Never operate the compressor without an intake filter.

1. Detach the safety valve (item 11) by unscrewing it anticlockwise.

2. Screw the new safety valve into place by screwing it clockwise.
