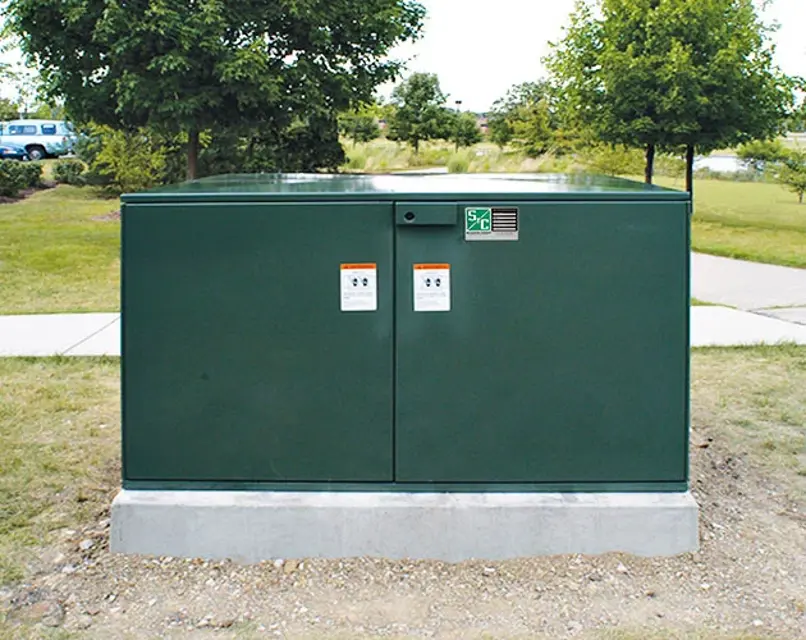

S&C Electric Company Pad-Mounted Switchgear PMH-8
Create an account to install this asset package.
Maintenance Plans for S&C Electric Company Pad-Mounted Switchgear Model PMH-8
Integrate maintenance plans directly into your work orders in MaintainX.
Pad-Mounted Gear Maintenance
Inspection and Cleaning
Inspect the gear and exercise the Mini-Rupter Switches.
Inspect and clean insulators and cable terminators.
Refer to S&C Instruction Sheet 662-590, “Inspection Recommendations.”
Is cleaning required based on inspection?
Select cleaning method if required
Ensure no use of pressure sprayed abrasives or solvents.
Safety Precautions
Ensure pad-mounted gear is de-energized and properly grounded if cleaning by hand.
Enclosure Finish Maintenance
Touch-up Procedure
Order S&C touch-up finish and primer
Clean the area to remove all oil and grease
Sand the area to remove rust and feather edges
Apply primer to the prepared area
Washdown Procedure
Wash the enclosure with mild household detergent solution
Refinishing Precaution
Is refinishing required before the finish has weathered?
Parts for S&C Electric Company Pad-Mounted Switchgear PMH-8
Access the parts list for your equipment in MaintainX.
Safety Label, Hazardous Voltage—More Than 400 Volts.
G-6503
Safety Label, Storage And Handling Of Spare Fuses
G-5147-2R1
Safety Label, Switches May Be Energized.
G-6501
Safety Label, Keep Away.
G-6500
Safety Label, Do Not Leave Barrier In This Position.
G-6399
Safety Label, Hazardous Voltage—More Than 400 Volts.
G-6503
Safety Label, Storage And Handling Of Spare Fuses
G-5147-2R1
Safety Label, Switches May Be Energized.
G-6501
Safety Label, Keep Away.
G-6500
Safety Label, Do Not Leave Barrier In This Position.
G-6399
Safety Label, Hazardous Voltage—More Than 400 Volts.
G-6503
Safety Label, Storage And Handling Of Spare Fuses
G-5147-2R1
Safety Label, Switches May Be Energized.
G-6501
Safety Label, Keep Away.
G-6500
Safety Label, Do Not Leave Barrier In This Position.
G-6399
