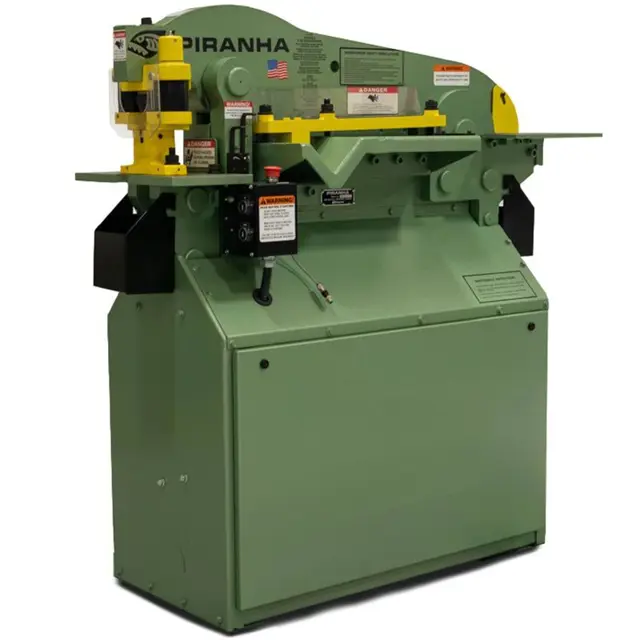

Piranha Ironworker P-50

Create an account to install this asset package.

Maintenance Plans for Piranha Ironworker Model P-50

Integrate maintenance plans directly into your work orders in MaintainX.

Initial 40 Hours Hydraulic Filter Element Replacement

CAUTION: When the filter element is plugged, hydraulic fluid will by-pass the element, allowing contamination to enter the hydraulic system.

It is recommended that the filter element be changed every three-(3) months, depending on workload and environmental conditions.

The element should be changed after the first 40 hours of use.

The filter housing is mounted at the tank door inside the machine.

Enter the item number for reordering

Upload a photo of the replaced filter element

Sign off on the filter element replacement

Run this procedure

3 Monthly Hydraulic Filter Element Replacement

Warning: This procedure requires trained personnel with PPE!

The hydraulic oil filter is a vital component of the hydraulic system as it filters impurities and foreign particles to avoid hydraulic component malfunctions.

CAUTION: When the filter element is plugged, hydraulic fluid will by-pass the element, allowing contamination to enter the hydraulic system.

It is recommended that the filter element be changed every three-(3) months, depending on workload and environmental conditions. The element should be changed after the first 40 hours of use.

The filter housing is mounted at the tank door inside the machine.

Enter the item number for reordering

Was the filter element replaced successfully?

Sign off on the filter element replacement

Run this procedure

1 Weekly / 40 Hourly Ironworker Lubrication

Points to lubricate

Select the points lubricated

Instructions

Apply Grease Until It Appears Around the Edge Of Parts

Type Lube

Sign off on the lubrication process

Run this procedure

40 Hourly Fasteners Check

FASTENERS AND CONNECTIONS

The efficiency and accuracy of the Piranha is dependent upon proper alignment of all parts. Alignment can only be achieved by keeping the fasteners tight. Check all bolts and nuts for tightness every 40 hours of operation, or when lubricating the machine. Unless specified in parts illustrations, torque socket head bolts and hinge pin jam nuts.

Check all hydraulic hose and fitting connections for tightness when lubricating the machine. We recommend you use Loctite hydraulic sealant or an equivalent product on all connectors.

Check to insure the hydraulic cylinder clevis is screwed tight on the piston rod each time machine is lubricated.
