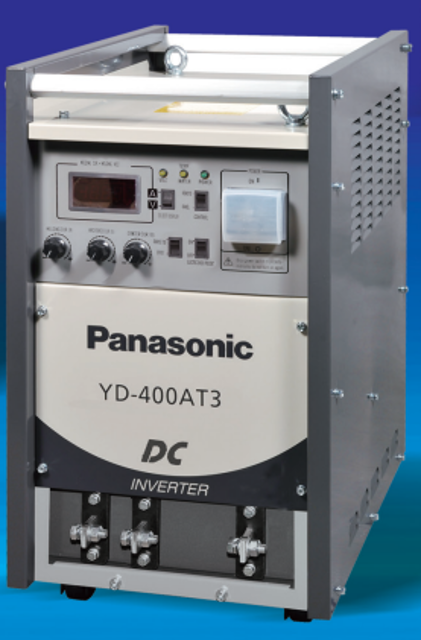

Panasonic IGBT CONTROLLED DC ARC WELDING MACHINE YD-400AT

Check the bolts whether fasten and the ill-insulation both in the input side and output side.

2. Is there any hot evidence in the connection between the cables?

Make sure that the power source grounding firmly.

3. The inside of the power source If the radiator is covered by a lot of dust, it won’t emit hot unhindered that may be bad for semiconductor or transistor.

In additional, the dust accumulated among the winding of the transformer also disadvantages the insulation. So keep clear the inside with dry compressed air by detaching the top and side boards at least every 6 months.; Make sure that refasten the top and side boards after clearing. Pay attention to that unfasten these boards may invalidate the cooling of the fan and lead to the transformer and semiconductor broken.;

Power lamp doesn’t light and no output after the power switch on. Check out the cause of the short voltage-phase.

Warning lamp of temperature lights flicker once every one second. Use according to the rated duty.

Warning lamp of voltage lights ever bright. Adjust the input voltage to the normal.; Warning lamp of voltage lights flicker twice quickly every one second. Check out the cause of the losing of certain phase.

Weld machine has neither display nor output. Check out the cause of the losing of phases.; Arc instability or unwell welding. Check and keep connection firmly. Set arc force current or start current suitable. Check the switch and connection of output cable, make sure that both them match the electrode.;

Please deal with these troubles in time or contact your dealer for help at detecting some abnormity during the inspection.

1. Is there any extraordinary vibration or noise or smell?

2. Is there any hot evidence in the connection between the cables?

3. Is the fan work smoothly after power switch on?

4. Does the power switch work correctly?

5. Are the connection and insulation of the cables correct?

6. Are there any faults in all cables?;

To fully act the performance of this machine and continue safely work every day, it is important to carry out daily inspection and periodic inspection.

When carrying out maintenance/inspection, be sure to turn off the switch box and confirm safety. Except for you need to inspect during power-on. Otherwise, it may lead to a serious accident affecting safety of the human body, such as an electric shock, burn, etc.

1. Remove the bolts on the side boards and detach the side boards.

2. Remove 2 bolts and 2 eyebolts on the top board and draw out the top by uplifting its foreside.;
