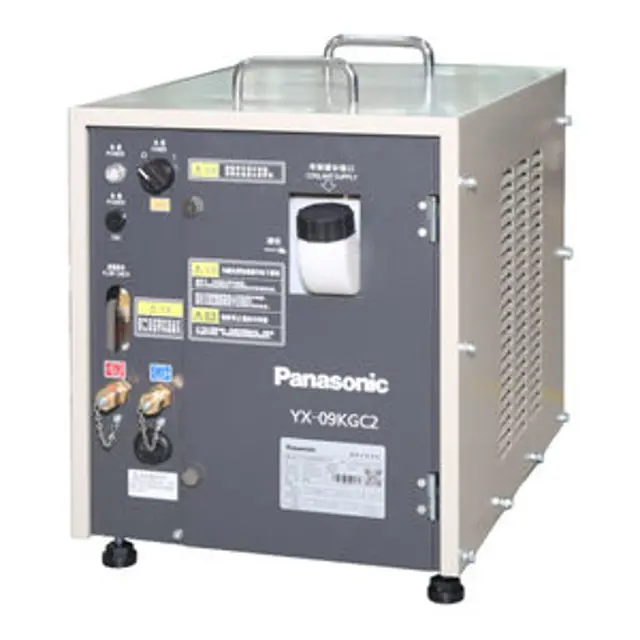

Panasonic LIQUID COOLING UNIT YX-09KGC2

Coolant (in case of using PANA COOLANT):

Check connections for tightness.

In case of air cleaning, use dry air only.

Mechanical seal, bearing and pump:

Check pump mechanical shaft seal for leakage.

Check bearings for abnormal rotation.

When the mechanical shaft seal of the pump leaks liquid or the bearing rotates abnormally, replace with a new pump.

Contact sales distributor or Panasonic representatives.

Cooling fan: Replace with a new one.

Check especially for deterioration of motor;

• It is important to carry out daily checks to utilize the most of the high performance of the unit and to maintain safe operation.

• Check the check points in the following tables. Clean and replace parts or components if needed.

• In order to maintain high performance and functions, use Panasonic genuine parts as replacement.

■Checks before turning ON power

• Check to make sure that work ground cable connections are secure.

• Check ground terminal connection for

To prevent electric shocks, check them without fail.

Around tank: Check for water leakage.

Open the front panel to check.;
