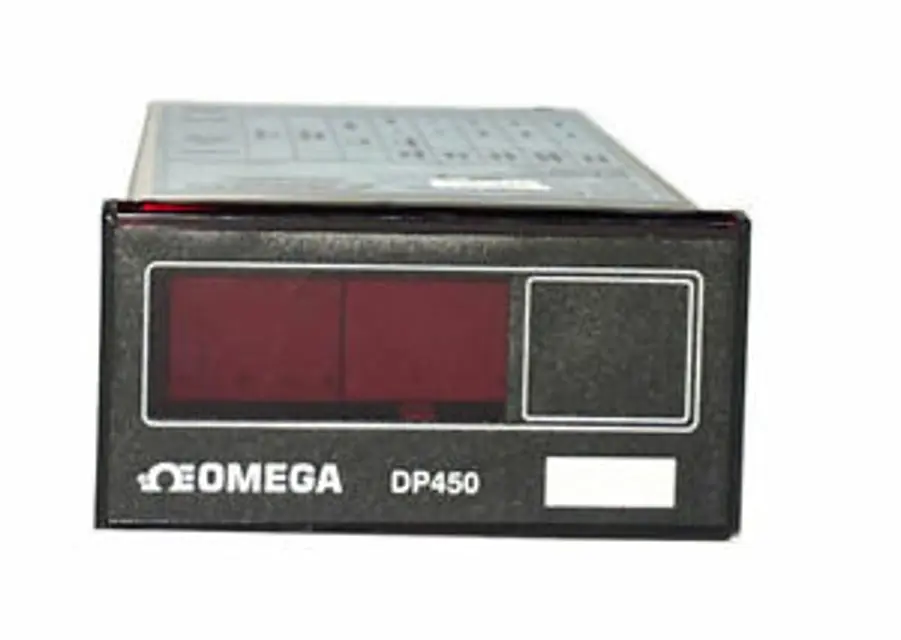

OMEGA Engineering Digital Panel Meter DP450-VDC

Create an account to install this asset package.

Maintenance Plans for OMEGA Engineering Digital Panel Meter Model DP450-VDC

Integrate maintenance plans directly into your work orders in MaintainX.

Digital Panel Meter Calibration

Equipment Check

Ensure all equipment is available

Preparation

Disconnect power from the unit

Connect the output of the DC voltage source to terminals 5 (+) and 6 (-) of the indicator

Calibration Process

Remove the front panel lens

Reconnect power and allow for a 5-minute warm-up

Input 0.0 mV from the DC voltage source

Run this procedure

Digital Panel Meter Adjustment

Setting the Alarm Limits

Preparation

Remove power from the instrument

Disconnect the signal input wires

Snap off the front panel lens

Apply power and allow approximately 5 minutes of warm-up time

Alarm Limit Adjustment

Set the HI/LO jumper position

Adjust the coarse potentiometer to set the alarm limit value

Run this procedure
