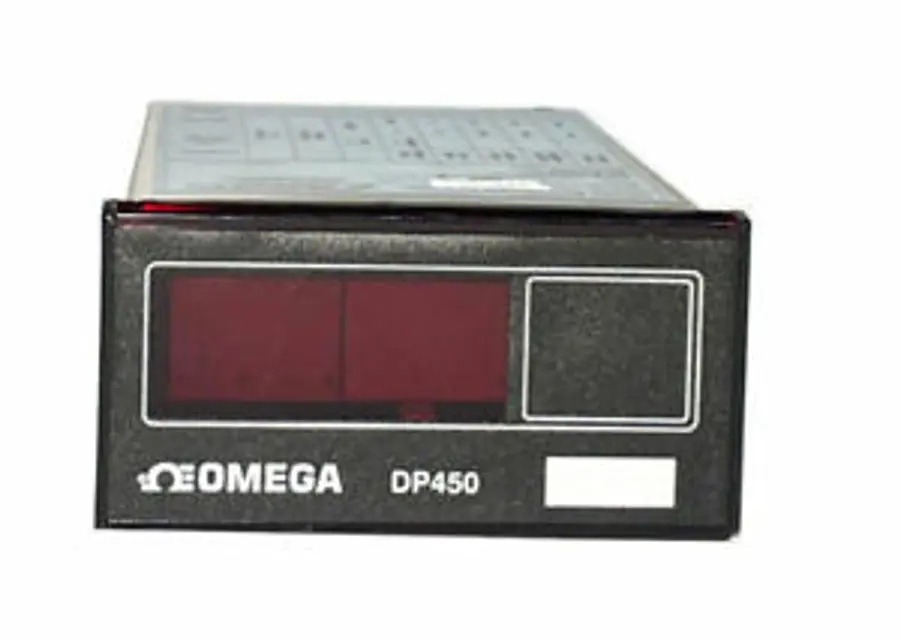

OMEGA Engineering Digital Panel Meter DP450-E
Create an account to install this asset package.
Maintenance Plans for OMEGA Engineering Digital Panel Meter Model DP450-E
Integrate maintenance plans directly into your work orders in MaintainX.
Digital Panel Meter Adjustment
Setting the Alarm Limits
Preparation
Remove power from the instrument
Disconnect the signal input wires
Snap off the front panel lens
Apply power and allow approximately 5 minutes of warm-up time
Alarm Limit Adjustment
Set the HI/LO jumper position
Adjust the coarse potentiometer to set alarm limit value
Digital Panel Meter Calibration
4-20mA Calibration
Ensure all equipment is available
Disconnect power from the unit and remove the front panel lens
Connect the DC current source to terminal 1 (+) and terminal 2 (-) located on the rear of the unit
Reconnect power and turn the unit on. Allow for a 5-minute warm-up
Input 4.0mA from the DC current source and adjust the ZERO pot for a display reading of 0.0 ± 1 count
Input 20.0 mA from the DC current source and adjust the SPAN pot for a reading of 100.0±1 count
Repeat steps 3 and 4 until no further adjustment is needed
