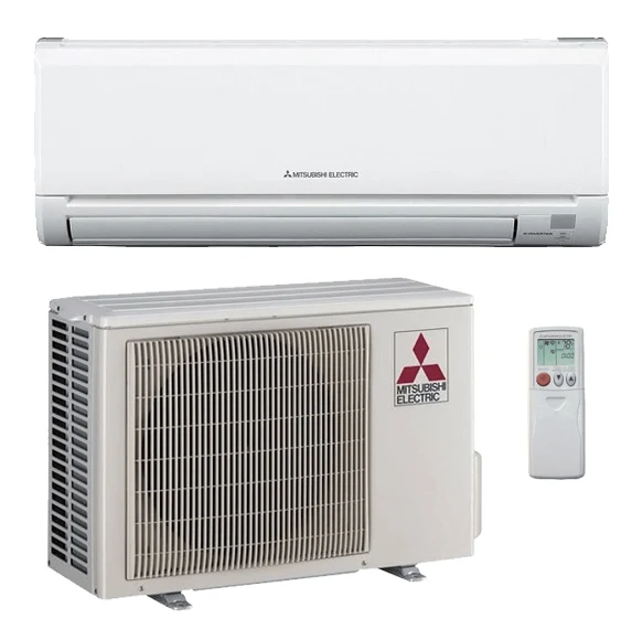

Mitsubishi HVAC Unit MUY-GE24NA

Need answers fast?
Explore the manual using AI.

Mitsubishi HVAC Unit MUY-GE24NA

View PDF Manual

Explore Maintenance Plans

Mitsubishi HVAC Unit MUY-GE24NA

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Mitsubishi HVAC Unit MUY-GE24NA

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi HVAC Unit MUY-GE24NA

Mitsubishi HVAC Unit MUY-GE24NA

Create an account to install this asset package.

Maintenance Plans for Mitsubishi HVAC Unit Model MUY-GE24NA

Integrate maintenance plans directly into your work orders in MaintainX.

Outdoor Fan Motor Removal

Check mark

Remove the top panel, cabinet and service panel

Check mark

Disconnect connectors CN931 and CN932 from the Inverter P.C. board

Check mark

Remove the propeller

Check mark

Remove the screws fixing the fan motor

Check mark

Remove the fan motor

Run this procedureArrow right

Cabinet Removal

Check mark

Panel and Cover Removal

Check mark

Remove the screws of the service panel

Check mark

Remove the screws of the top panel

Check mark

Remove the screw of the valve cover

Check mark

Remove the service panel

Check mark

Remove the screws fixing the conduit cover

Check mark

Remove the conduit cover

Check mark

Remove the top panel

Check mark

Remove the valve cover

Run this procedureArrow right

Discharge Temperature Thermistor / Defrost Thermistor / Outdoor Heat Exchanger Temperature Thermistor / Ambient Temperature Thermistor Removal

Check mark

Preparation

Check mark

Remove the cabinet and panels

Check mark

Disconnect the lead wire to the reactor

Check mark

Disconnect Connectors

Check mark

Disconnect connectors on Inverter P.C. board

Check mark

Thermistor Removal

Check mark

Pull out the discharge temperature thermistor from its holder

Check mark

Pull out the defrost thermistor from its holder

Check mark

Pull out the outdoor heat exchanger temperature thermistor from its holder

Run this procedureArrow right

R.V. Coil Removal

Check mark

Preparation

Check mark

Remove the cabinet and panels

Check mark

Refer to 1 for guidance on removing the cabinet and panels

Check mark

Disconnection

Check mark

Disconnect the connector CN602 (R.V. coil) from the Inverter P.C. board (MUZ)

Check mark

Removal

Check mark

Remove the R.V. coil

Run this procedureArrow right

Inverter Assembly / Inverter P.C. Board Removal

Check mark

Remove the cabinet and panels

Check mark

Disconnect the lead wire to the reactor

Check mark

Disconnect connectors from Inverter P.C. board

Check mark

Remove the compressor connector

Check mark

Remove the screws fixing the relay panel

Check mark

Remove the relay panel

Check mark

Remove the ground wires and the lead wires of the inverter P.C. board

Check mark

Remove the screw of the PB support

Check mark

Remove the inverter P.C. board from the relay panel

Run this procedureArrow right
