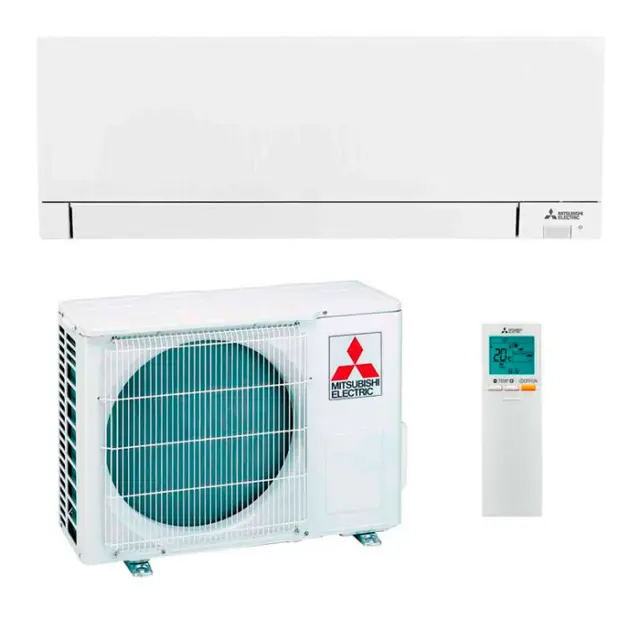

Mitsubishi Split-Type Air Conditioner MSZ-GB35VA

CAUTION: When the catechin air filter is to be removed, do not touch the metal parts of the indoor unit. This may cause an injury.

Do not wash with scrubbing brush or hard surface of sponge. Otherwise, the filter may deform.

If the dirt is noticeable, wash the filter with a solution of mild detergent diluted in lukewarm water.

If hot water (50 °C or more) is used, the filter may be deformed.

Do not expose the catechin air filter to direct sunlight or heat from a fire when drying it.

Catechin air filter installed (Securely install its tabs.)

Remove the catechin air filter (left one). The air cleaning filter is not attached to the right side catechin air filter.

Pull up the tabs on both sides of the air cleaning filter with your finger and remove the air cleaning filter (blue bellows type) from the catechin air filter.

Attach a new air cleaning filter to the catechin air filter so that all 8 tabs on the catechin air filter are securely installed.

Install the catechin air filter. (Securely install its tabs.)

Securely close the front panel.

If the air cleaning filter is clogged, it may lower the unit’s capacity or cause condensation at the air outlet.

The air cleaning filter is disposable. The standard usable term is about 1 year.

Sign off on the filter replacement

Warning: Do not use hot water or chlorine detergent for cleaning. Avoid direct sunlight or heat when drying.

Remove the catechin air filter (left one). The air cleaning filter is not attached to the right side catechin air filter.

Pull up the tabs on both sides of the air cleaning filter with your finger and remove the air cleaning filter (blue bellows type) from the catechin air filter.

Soak the filter together with its frame in lukewarm water and wash it. If the dirt is noticeable, use a solution of mild detergent diluted in lukewarm water.

After rinsing with water/lukewarm water, shake off the excess water and dry the filter well in the shade.

Sign off on the filter cleaning

Warning: Do not touch the heat exchanger directly with your hands. Use gloves.

Caution: Do not step onto an unstable bench when cleaning. Use only the brush of QUICK CLEAN KIT.

Note: The QUICK CLEAN KIT can only be fitted to a vacuum cleaner with a hose/tube diameter (inside diameter) of 32 to 39 mm.

Catechin air filter removed before cleaning?

Brush of QUICK CLEAN KIT installed to your vacuum cleaner?

Sign off on the heat exchanger cleaning

CAUTION: Do not drop the front panel or pull it out forcibly. The panel may be damaged. Do not step onto an unstable bench when removing or installing the front panel. This may cause an injury, etc., if you fall down.

Hold both ends of the front panel and lift the panel up until a “click” is heard. Holding the hinges, lift the panel up until it is level, and pull the hinges forward to remove the front panel.

Wipe the front panel with a soft dry cloth or wash it with water. After washing the panel, wipe up the remaining water with a soft dry cloth and let it dry out of direct sunlight.

If the dirt is noticeable, wipe the front panel with a cloth soaked in a solution of mild detergent diluted in lukewarm water. Do not use gasoline, benzine, thinner, polishing powder, or insecticide and do not wash the front panel with a scrubbing brush or the hard surface of a sponge.

Do not soak the front panel in water/lukewarm water longer than two hours and do not expose the panel to direct sunlight, heat, or flames when drying it. The panel may be deformed or discolored.

Hold both ends of the front panel, keep the panel level, and insert the hinges into the holes on the upper part of the indoor unit until they click into place. Then, close the front panel securely and press the three positions on the front panel as indicated by the arrows.

Sign off on the front panel cleaning
