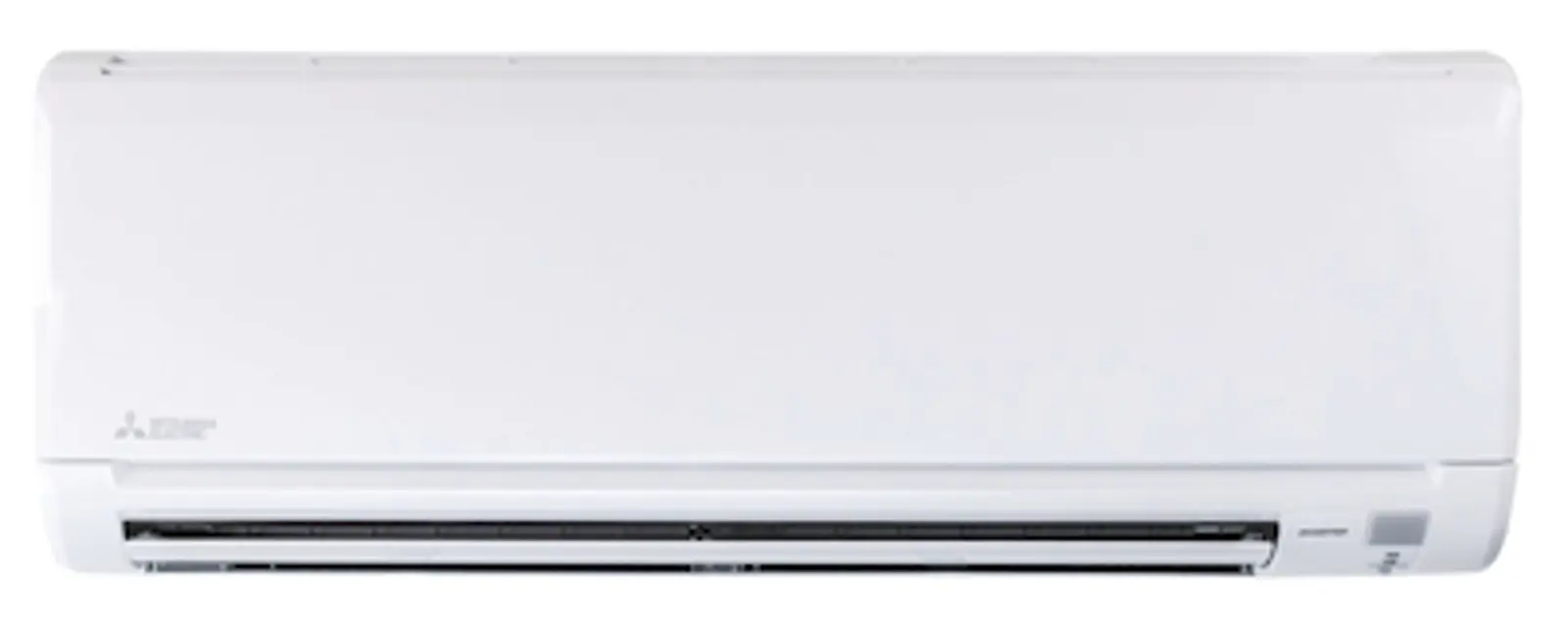

Mitsubishi Split-type Air Conditioner MSY-GA24NA

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Split-type Air Conditioner Model MSY-GA24NA

Integrate maintenance plans directly into your work orders in MaintainX.

Front Panel Cleaning

CAUTION! Switch off the power supply or turn off the breaker before cleaning.

Be careful not to touch the metal parts with your hands.

Do not use benzine, thinner, polishing powder, or insecticide.

Use only diluted mild detergents.

Do not expose parts to direct sunlight, heat, or fire to dry.

Do not use water hotter than 120°F (50°C).

Do not open the front panel up past the level position.

The panel may come off in order to prevent it from being damaged.

The panel may also come off if the upper part of the panel is pulled down.

Run this procedure

3 Monthly Air Cleaning Filter Cleaning

CAUTION!

• Switch off the power supply or turn off the breaker before cleaning.

• Be careful not to touch the metal parts with your hands.

• Do not use benzine, thinner, polishing powder, or insecticide.

• Use only diluted mild detergents.

• Do not expose parts to direct sunlight, heat, or fi re to dry.

• Do not use water hotter than 120°F (50°C).

Clean every 3 months:

1. Remove dirt by a vacuum cleaner.

Run this procedure

1 Yearly Air Cleaning Filter Replacement

CAUTION! Switch off the power supply or turn off the breaker before cleaning. Be careful not to touch the metal parts with your hands. Do not use benzine, thinner, polishing powder, or insecticide. Use only diluted mild detergents. Do not expose parts to direct sunlight, heat, or fi re to dry. Do not use water hotter than 120°F (50°C).

Power supply switched off

Hands not touching metal parts

No use of benzine, thinner, polishing powder, or insecticide

Only diluted mild detergents used

Parts not exposed to direct sunlight, heat, or fire to dry

No use of water hotter than 120°F (50°C)

Air cleaning filter replaced with a new one

Parts Number MAC-2300FT

Run this procedure

2 Weekly Air Filter Cleaning

CAUTION! Switch off the power supply or turn off the breaker before cleaning. Be careful not to touch the metal parts with your hands. Do not use benzine, thinner, polishing powder, or insecticide. Use only diluted mild detergents. Do not expose parts to direct sunlight, heat, or fire to dry. Do not use water hotter than 120°F (50°C).

Power supply switched off

Hands not touching metal parts

No use of benzine, thinner, polishing powder, or insecticide

Only diluted mild detergents used

Parts not exposed to direct sunlight, heat, or fire to dry

Water used is not hotter than 120°F (50°C)

Dirt removed by a vacuum cleaner, or rinsed with water

After washing with water, dried well in shade

Run this procedure
