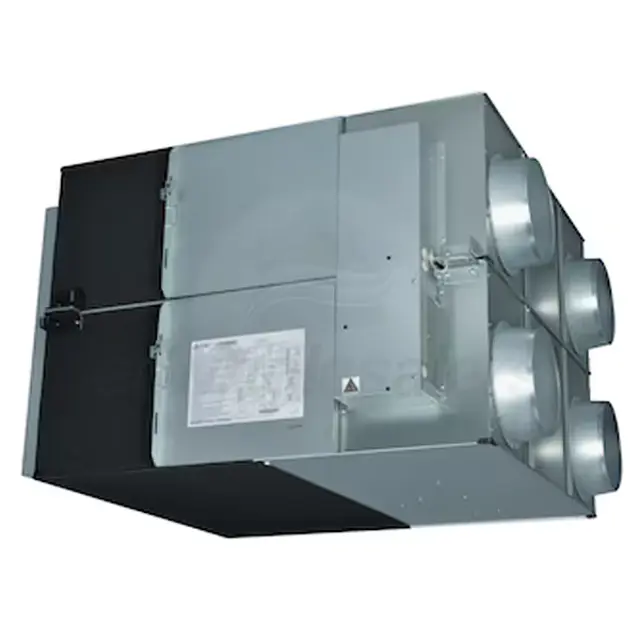

Mitsubishi Lossnay Energy Recovery Ventilator LGH-150RX5-E

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Lossnay Energy Recovery Ventilator Model LGH-150RX5-E

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Air Filter Cleaning

Remove all dust and dirt on air filters at regular intervals in order to prevent a deterioration in the Lossnay functions.

Removing the parts:

1) Maintenance cover. Locate and remove the cover fixing screw.

2. Pull back the hinged clip.

3. Open the door and lift off of the hinge brackets.

2)Air filters

1. After pulling out the Lossnay cores, undo filter guides, then remove the air filters, located at the bottom left and right of the Lossnay cores, as below.

Cleaning the Air filters

1. Use a vacuum cleaner to remove light dust.

Run this procedure

1 Yearly Lossnay Cleaning

Remove all dust and dirt on Lossnay cores at regular intervals in order to prevent a deterioration in the Lossnay functions.

Removing the parts

1) Maintenance cover

1. Locate and remove the cover fixing screw.

2. Pull back the hinged clip.

3. Open the door and lift off of the hinge brackets.

2) Lossnay cores

1. Take hold of the handle and draw the Lossnay cores out from the main unit.
