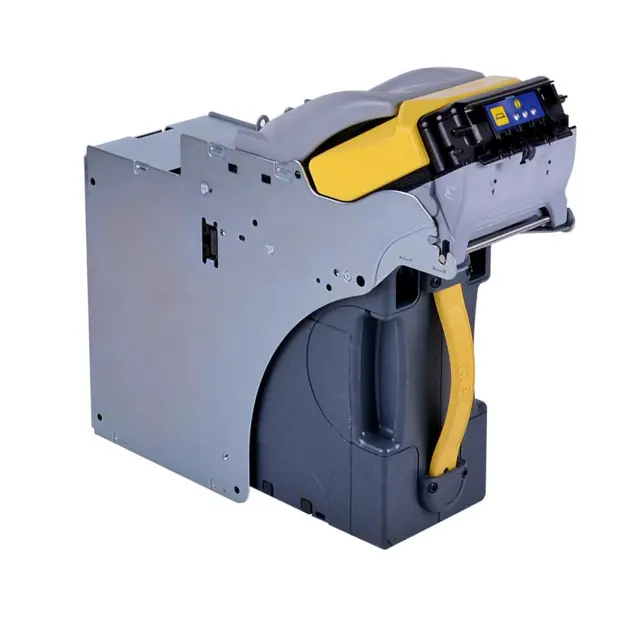

MEI Bill Acceptor SENL7611A

Turn off the machine as per the manufacturer's instructions

Remove the acceptor module from the chassis

Open the acceptor module by pulling the yellow cover toward your hand and lifting up

Clear the note path area of any foreign objects

Wipe the note path and sensor areas with a soft damp cloth

Ensure no streaks or residual soap remain on the note path

Remove the acceptor module from the chassis.

Open the acceptor module by placing the palm of your hand on the front of the module and placing your fingers around the top of the yellow cover.

Remove the yellow cover from the acceptor module by turning the acceptor module so that the top of the cover is facing you.

Wedge the tips of your fingers underneath the left and right front top corners of the yellow cover.

Lift the cover’s corners out and then back toward you to release the cover.

Slide the yellow cover back and remove it.
