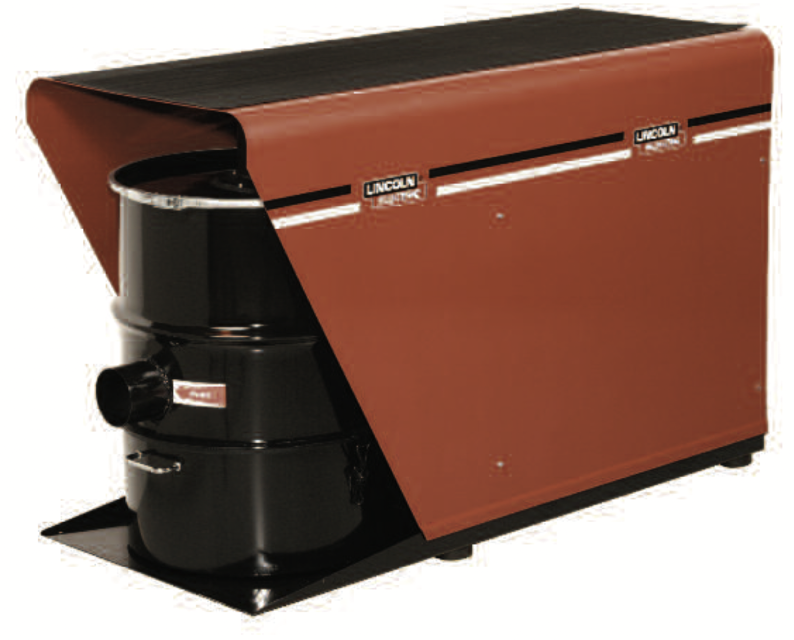

Lincoln Electric Welding Fume Extractor X-TRACTOR 5A

- Clean all ball bearings and fill 50% of the bearing and approximately 65% of the housing with new grease;

- Remove four of the screws for the main cover of the unit. Tilt the cover forward

- Disconnect compressed air and drain the compressed air tank in order to empty. The drain valve is situated at the lower rear end

- Disconnect the coil for the solenoid valve

- Disconnect the hose clamp for the solenoid valve

- Disconnect the hose between the filter cover and rear wall

- Open the clamp on top of dust bin

- Lift the cover carefully up and pull slightly backwards. Be sure the inlet connection between the filter cover and the main chassis is separated

- Lift the cover straight up. Unscrew the center bolt and remove the cartridge. It is recommended to wrap the filter in a properly closed plastic bag before removal, to avoid contact with dust

- The tank should be drained at least once a week; - Pull the ring of the drain valve until only clean air comes out

- Always protect your eyes when draining the tank;
