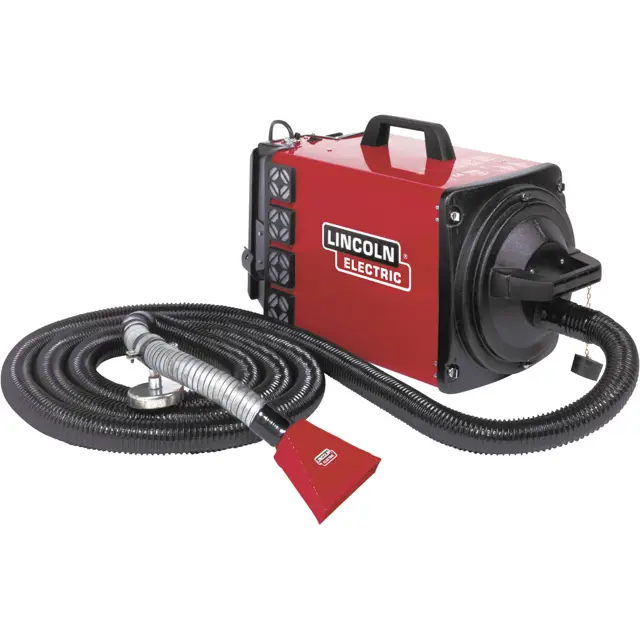

Lincoln Electric Welding Fume Extractor X-TRACTOR 1GC

- Open the quick-release fasteners on the four corners of the case front by rotating the fasteners 1/4 turn

- Remove the canister by pulling on the handle and stand the canister with the case front on top

- Open the two other quick-release fasteners (at the top and bottom of the case front) by rotating 1/4 turn. Remove the case front from the canister

- Empty the heavy particle trap built into the case front

- Replace the case front by rotating the quick-release fasteners to the “closed” position: the fastener will line up with the lines in the case. In this position they are parallel with the case side. With the fasteners in this position, place the case front onto the canister and press the quick- release fasteners into the two holes. When they “click”, they are fastened. If they do not “click” or fasten, then check to see that they are in the closed position described above

- Replace the canister into the machine with the inlet on the bottom. Fasten the case front to the machine;

- Disconnect the machine from input power

- Close the inlet with the rubber plug

- Connect compressed air to the fitting on the rear of the machine and open the ball valve on the fitting

- Rotate the fitting 200°, back and forth 6 - 7 times. This will rotate the cleaning device inside the machine, distributing the jets of compressed air over the circumference of the filter

- Close the ball valve and disconnect the compressed air

- Remove the plug from the inlet and reconnect to input power;
