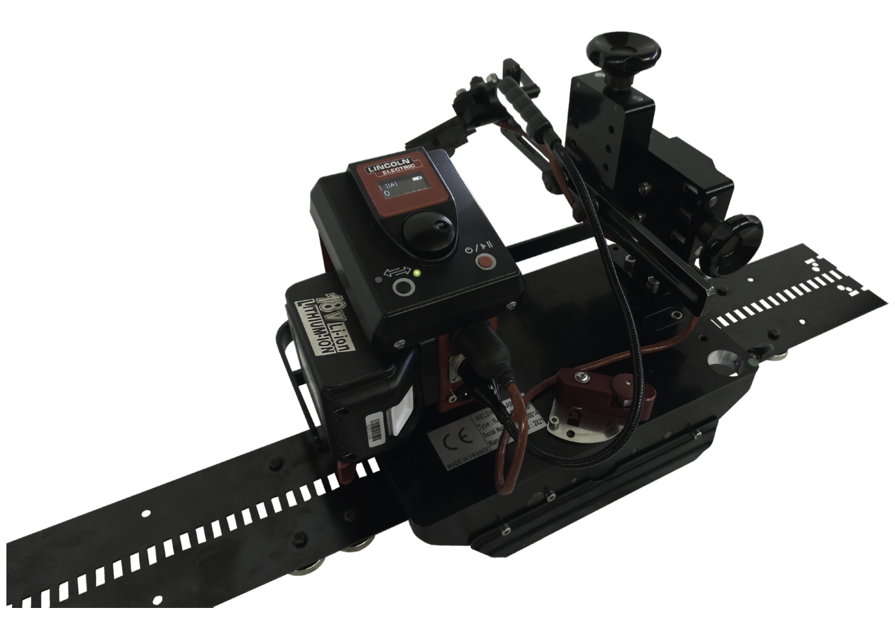

Lincoln Electric PORTABLE WELDING CARRIAGE WELDY-RAIL 2.0 PRO
Need answers fast?
Explore the manual using AI.
The Lincoln Electric Portable Welding Carriage Weldy-Rail 2.0 Pro is a versatile and efficient solution for automated welding tasks. Designed for portability and ease of use, this welding carriage enhances productivity and precision in various industrial applications.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Lincoln Electric PORTABLE WELDING CARRIAGE WELDY-RAIL 2.0 PRO
Create an account to install this asset package.
Maintenance Plans for Lincoln Electric PORTABLE WELDING CARRIAGE Model WELDY-RAIL 2.0 PRO
Integrate maintenance plans directly into your work orders in MaintainX.
Guide Roller Replacement
- Unscrew the screw and remove the guide roller
- Repeat the operation to remove the four guide rollers
- Reverse the procedure for reassembly.
100 Hour Maintenance
- Clean the carriage and adjustment parts
1. clean the lower casing of the mobile base
2. clean the support rollers
- Clean and lubricate the components of the moving parts
- Check the wear and tear of moving parts and replace any parts with excessive play
- Carefully blow on the printed circuit boards with dry air and check the connections.
Routine Maintenance
- Remove weld splatter
- Regularly clean the outside of the carriage and adjustment parts
- Clean the holder every time the battery is inserted
- Regularly clean the magnets or suction cups of the rails using a soft cloth and a blower.
Complete Suction Cup Unit Replacement
- Turn off the pneumatic supply and isolate the rail from the pneumatic circuit
- Unscrew the Tee and take it off
- Unscrew the four screws and then remove the complete suction cup unit
- Replace the complete suction cup unit and screw back the screws
- Put back the Tee
- Repeat the operation if several complete suction cup units need replacement.
Suction Cup Replacement
- Turn off the pneumatic supply and isolate the rail from the pneumatic circuit
- Unscrew the nut integral with the suction cup using a 17mm open-ended spanner
- Replace the suction cup
- Screw the nut integral with the suction cup using a 17mm open-ended spanner
- Repeat the operation if several suction cups need replacement.
Parts for Lincoln Electric PORTABLE WELDING CARRIAGE WELDY-RAIL 2.0 PRO
Access the parts list for your equipment in MaintainX.
Innershield Torch Holder
AS-PS-T0550002
End Of Rail Magnet,
AS-PP-T0550112
Ht Magnetic Rail
AS-PP-T0550111
Geared Motor With Bundle
AS-PS-T0550109
Original Interface
AS-PS-T0550110
Innershield Torch Holder
AS-PS-T0550002
End Of Rail Magnet,
AS-PP-T0550112
Ht Magnetic Rail
AS-PP-T0550111
Geared Motor With Bundle
AS-PS-T0550109
Original Interface
AS-PS-T0550110
Innershield Torch Holder
AS-PS-T0550002
End Of Rail Magnet,
AS-PP-T0550112
Ht Magnetic Rail
AS-PP-T0550111
Geared Motor With Bundle
AS-PS-T0550109
Original Interface
AS-PS-T0550110
