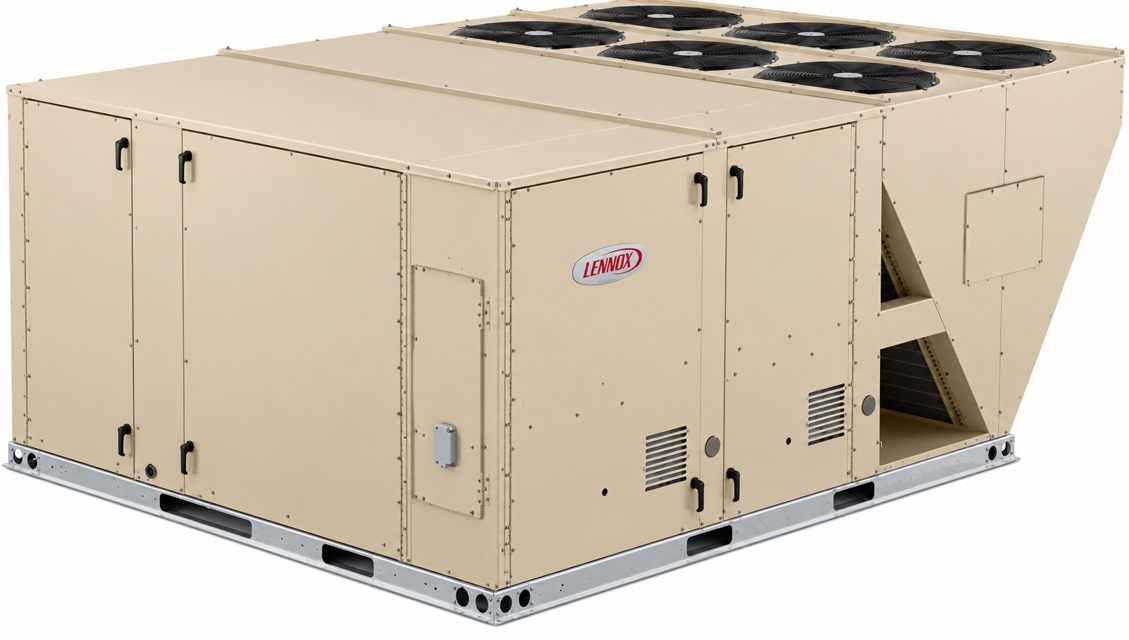

Lennox HVAC Unit LGT156H5M

Check with gas company or authorities for local code requirements

Refer to the LGT Installation, Operation and Maintenance instruction

Inspect coil at the beginning of each season

Clean coil using mild detergent or commercial coil cleanser

Check condensate drain pan and line

Flush coil and condensate drain with water

Check with gas company or authorities for local code requirements

Refer to the LGT Installation, Operation and Maintenance instruction

Turn off power before removing access panel or cleaning blower wheel

Inspect supply air blower wheel for accumulated dirt or dust

Clean the blower wheel if dirt or dust is present

Verify local code requirements with gas company or authorities

Check the LGT Installation, Operation and Maintenance instruction

Measure the pressure drop between the gas meter and the unit

Is the pressure drop less than or equal to 0.5”W.C.?

Ensure the supply gas pipe is not smaller than the unit gas connection

Preliminary and Seasonal Checks

Ensure the unit is installed according to installation instructions and applicable codes.

Inspect all electrical wiring for loose connections and tighten as required.

Check refrigerant lines for good condition and ensure they do not rub against the cabinet or other lines.

Check voltage to ensure it is within the range listed on the nameplate.

Is the voltage within the range listed on the nameplate?

Recheck voltage and amp draw with unit running.

Is the voltage within range while the unit is running?

Inspect and adjust blower belt.

Review LGT Installation, Operation and Maintenance instruction

Check piping connection for gas leaks
